Dropleg Jacks, Hydraulic Jacks, and Landing Gear

big foot hydaulic jack.jpg
BIG FOOT HYDRAULIC JACKS

This product gets its name from its large 10” by 10” foot pad that won’t sink into soft ground. The jack is equipped with an adjustable mounting bracket and hardware to fit most gooseneck trailers. Comes complete with hydraulic cylinder and pump, hoses, switch control box, wiring harness and 120 amp breaker, along with the industry standard tube-in-tube jack design (4 1/2” outer tube for added strength). Requires automotive type 12v battery (not included).

The Big Foot comes with a 5 year warranty on the hydraulic cylinder, 2 years on all other parts, and 1 year on labor. The finish paint is gray and the product is boxed. A dual leg set is available as part number SQI24-C.



PART NO.

STATIC LOAD

LIFT CAPACITY

LIFT

SQI24-I 12,000 LBS 12,000 LBS 24"
SQI24-C 24,000 LBS (TANDEM SET)                      24,000 LBS 24"

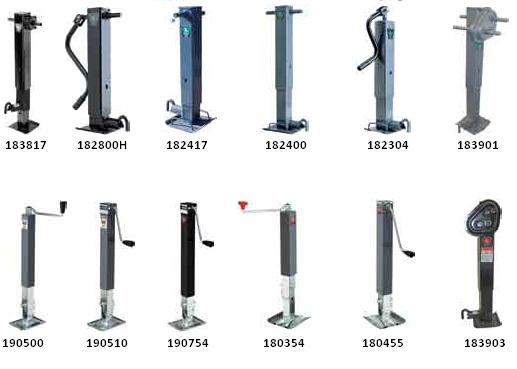

BULLDOG DROPLEG JACKS

BULLDOG® Jacks offer a variety of capacities to meet your needs. The 180 and 190 series
have a prime paint outer leg and zinc plated inner leg and drop tube. The 182 series jacks
are primer paint throughout, and available with a self-returning springloaded dropleg. Part
numbers ending in “H” include jack and handle. The 183 series are 2-speed models. The
183900 series jacks feature a traditional style 2-speed gearbox.

PART NO.

STATIC LOAD

LIFT CAP.

LIFT

DROP
LEG TRAVEL

RETRAC-
TED HEIGHT

TYPE OF WIND

HANDLE INCL.

SPRING LOADED

PIN POSTION

OUTER TUBE

1907048,000 LBS5,000 LBS15"13.5"22.66"TOP YES N/A N/A 2.53"
1907548,000 LBS5,000 LBS15" 13.5" 25.06"SIDE YES N/A N/A 2.53"
1905008,000 LBS7,000 LBS15" 13.5" 20.75"TOP YES N/A N/A 2.53"
1905108,000 LBS7,000 LBS15" 13.5" 22.95"SIDE YES N/A N/A 2.53"
18035410,000 LBS7,200 LBS15" 13.5" 22.93"TOP YES N/A N/A 3.00"
18045510,000  LBS7,200 LBS15" 13.5" 25.67"SIDE YES N/A N/A 3.00"
18230412,000 LBS10,000 LBS12.5"13.5" 22.5"TOP YES NO RIGHT 4.00"
18240012,000 LBS10,000 LBS 12.5"13.5" 27.5"SIDE NO NO RIGHT 4.00"
182400H12,000 LBS10,000 LBS 12.5"13.5" 27.5"SIDE YES NO RIGHT 4.00"
18241712,000 LBS10,000 LBS 12.5"13.5" 27.5"SIDE NO NO FRONT 4.00"
182417H12,000 LBS10,000 LBS 12.5"13.5" 27.5"SIDE  YES NO FRONT 4.00"
18280012,000 LBS10,000 LBS 12.5"13.5" 27"SIDE  NO YES RIGHT 4.00"
182800H12,000 LBS10,000 LBS 12.5"13.5" 27"SIDE  YES YES RIGHT 4.00"
18281712,000 LBS10,000 LBS 12.5"13.5" 27"SIDE  NO YES FRONT 4.00"
182817H12,000 LBS10,000 LBS 12.5"13.5" 27"SIDE  YES YES FRONT 4.00"
18341712,000 LBS10,000 LBS 12.5"13.5" 27"SIDE  NO NO FRONT 4.00"
18390112,000 LBS10,000 LBS 12.5"13.5" 28.5"SIDE  NO NO FRONT 4.00"
18390312,000 LBS10,000 LBS 12.5"13.5" 28.5"SIDE  NO YES FRONT 4.00"
18381712,000 LBS10,000 LBS 12.5"13.5" 27"SIDE  NO YES FRONT 4.00"





BULLDOG BOLT-ON ELECTRIC MOTOR KIT

The Bulldog Bolt-On Electric Motor will bolt to any existing 1-Speed 12K Bulldog Jack. The 182420 features easy installation with 7,500 lbs. of lifting power. This motor comes with everything you need to convert a manual crank Bulldog jack to an easy to use Power Jack.

$566.59 182420 Quantity:
SAF-HOLLAND DROPLEG JACKS

The 48000 Series has been the industry standard for years. The DUALPIN Series offers greater Dropleg stability than single pin models. Its patented quick-release handle makes operation fast, simple and safer, keeping hands away from the load. Both Series of Dropleg Jacks come standard with a 4 3/8” square outer tubing, and prime paint finish. Also available with handle and handle clip. Both Series offer the “springloaded” self-retracting leg option. The springloaded LG8700-31SL-P is available with a gray finish paint, specifically designed for use on aluminum trailers. Mounting brackets are welded onto the dropleg jack, so the jack can be bolted to the trailer rather than welded. This reduces assembly time and preserves the finish quality. The finish paint on both the handle and jack is baked-on at high temperature. 5 year warranty.



PART NO.

STATIC LOAD

LIFT CAPACITY

   LIFT

DROPLEG TRAVEL

RETRACTED HEIGHT

SPRING LOADED

HANDLE INCLUDED

48000 12,000 LBS 12,000 LBS 13 1/2" 12" 26 1/8" NO YES
48000SL 12,000 LBS 12,000 LBS 13 1/2" 12" 26 1/8" YES YES
DUALPIN 20,000 LBS 12,500 LBS 12" 14" 26 1/8" NO YES
DUALPIN-SL 20,000 LBS 12,500 LBS 12" 14" 26 1/8" YES YES
LG8700-31 12,000 LBS 12,000 LBS 13 1/2" 12" 26 1/8" NO NO
LG8700-31SL 12,000 LBS 12,000 LBS 13 1/2" 12" 26 1/8" YES NO
LGD700-21 20,000 LBS 12,500 LBS 12" 14" 26 1/8" NO NO
LGD700-21SL 20,000 LBS 12,500 LBS 12" 14" 26 1/8" YES NO
LG8700-31SL-PBULK-4 12,000 LBS 12,000 LBS 13 1/2" 12" 26 1/8" YES NO

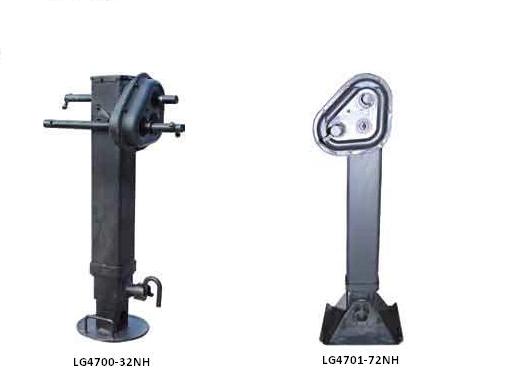

SAF-HOLLAND HEAVY DUTY JACKS

These Heavy Duty Jacks are made of 4 3/8” square outer tubing and are available with a single speed or two-speed gearbox. Combine two jacks to make a set of landing gear. Both the single speed and high gear on the two-speed gearbox operate at 4.5 turns per inch of travel. Low gear on the two-speed gearbox operates at 34.4 turns per inch of travel. The LG4700 jacks are non-spring loaded droplegs, while the LG4701 jacks are fixed leg. SAF-Holland heavy duty jacks are typically used on gooseneck trailers requiring very heavy weight bearing capacities. Finish is prime paint. 5 year warranty.



Part No.

Static Load

Lift Capacity

Lift Speed

Dropleg Travel

Retracted Height

Handle Included

LG4700-30 50,000 LBS 25,000 LBS 13 1/2" SET 12" 29 7/8" YES
LG4700-31 25,000 LBS 6,500 LBS 13 1/2" SINGLE 12" 29 7/8" YES
LG4700-31NH 25,000 LBS 6,500 LBS 13 1/2" SINGLE 12" 29 7/8" NO
LG4700-32 25,000 LBS 25,000 LBS 13 1/2" TWO 12" 29 7/8" YES
LG4700-32NH 25,000 LBS 25,000 LBS 13 1/2" TWO 12" 29 7/8" NO
LG4701-71 35,000 LBS 6,500 LBS 17" SINGLE N/A 34 1/4" YES
LG4701-71NH 35,000 LBS 6,500 LBS 17" SINGLE N/A 34 1/4" NO
LG4701-72 35,000 LBS 35,000 LBS 17" TWO N/A 34 1/4" YES
LG4701-72NH 35,000 LBS 35,000 LBS 17" TWO N/A 34 1/4" NO





SAF-HOLLAND HEAVY DUTY LANDING GEAR

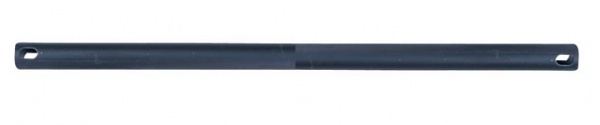

The 51,000 Series Landing Gear is designed for strength and durability with strong ductile iron gears and 4 3/8” square outer tube. This SAF-Holland landing gear features a universal mounting bracket for inside or outside installation on semi-type trailers. High gear on the two-speed set operates at 4.5 turns per inch of travel, and low gear operates at 34.4 turns per inch of travel. LGC001-70 includes connecting pipe, strut brackets, crank handle, and clip. Finish is prime paint. 5 year warranty.



PART NO.

STATIC LOAD

LIFT CAPACITY

LIFT

SPEED

RETRACTED HEIGHT

HANDLE INCLUDED

LGC001-70

140,000 LBS 50,000 LBS 17" SET 34.25" YES

REPLACEMENT JACKS FOR 51,000 SERIES LANDING GEAR

LGC001-71 70,000 LBS 50,000 LBS 17" SINGLE

34.25"

NO
LGC001-72 70,000 LBS 50,000 LBS 17" TWO 34.25" NO





MAGNUM LIFT BOLT-ON ELECTRIC MOTOR KIT

This bolt-on electric motor from Magnum Lift is a quick and easy upgrade, designed to convert the Binkley two-speed jack into a power jack, capable of lifting up to 6,500 lbs., at 7 per minute. In case of battery failure, the electric motor comes with a manual crank backup shaft (can be turned with a standard socket and ratchet, not included). Included is a mounting bracket, harnessed switch box with built-in circuit breaker and electrical connectors. The Magnum Lift is 9-1/2 wide, can mount on either side of the Binkley two-speed jack, and comes with a 3 year warranty.



T.E.M. DROPLEG JACK

A Dropleg Jack for heavier tongue trailers, the T.E.M. Dropleg Jack contain a 1 1/4 Acme screw with a 2 cast nut, 4 square outer tubing, and a primer painted finish. 15K STATIC LOAD, 10K LIFT CAPACITY, 8 LIFT, 12 DROPLEG TRAVEL, 27 RETRACTED HEIGHT, TOPWIND, INCLUDES HANDLE, NON-SPRINGLOADED, RIGHT PIN POSITION

$173.30 TC10B Quantity:
SHELBY DROPLEG JACKS

Shelby’s line of Thoroughbred Square Tube Dropleg Jacks is manufactured with 12 gauge, 2.25” square steel tubing, that provides 70% more resistance to bending than comparable round tube jacks. They are also constructed with heavy duty ball bearings and copper infiltrated iron gears to reduce wear and extend the life of the jack. The cap on the top of the jack is removable, providing access to the gears for lubrication. Additionally, the handle has an oil-impregnated bushing for easy cranking and long life. Part 6100Z includes mounting hardware that fits 3” to 5” tongues. All Thoroughbred Series Jacks carry a lifetime limited mechanical warranty.  Made in the USA.



PART NO.

STATIC LOAD

LIFT CAPACITY

LIFT

DROPLEG TRAVEL

RETRACTED HEIGHT

TYPE OF WIND

6100Z 2,500 LBS 2,500 LBS 15" 15" 24.25" SIDE
6101B 3,500 LBS 3,500 LBS 15" 15" 24.25" SIDE
6108SW

8,000 LBS

7,000 LBS 14.25" 14.5" 24.25" SIDE
6108TW 8,000 LBS 7,000 LBS 14" 14.5" 22" TOP
