WHEEL SELECTION HOW-TO'S
Product code: WSHT

Price: $0.00


A great deal of thought and consideration should be give when selecting trailer wheels. Important choices must be made from the various wheels on the market. When combing wheels, tires, hubs and axles, the load carrying capacity is limited too whichever component has the lowest capacity. Load capacities relate specifically to generally accepted standard axle applications for conventional trailers used in normal highway service, loaded equaly side-to-side. Unusual axle configurations, unequal fore and aft loading, or overload conditions can cause premature failure of wheels, tires and/or other parts.

HOW TO DETERMINE BOLT PATTERN

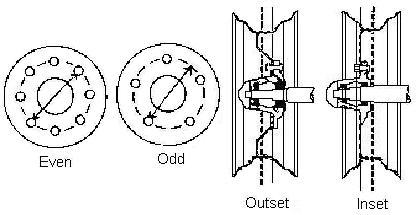

Match wheels to the hub by number of bolts and bolt circle. To determine the bolt circle on wheels with an even number of bolt holes, measure center-to-center on bolt holes directly across from each other on the diameter (example: 8 on 6.5 would mean 8 bolt holes with 6.5 center-to-center diameter). On odd number bolt wheels, measure any bolt hole center to the point halfway between bolt holes on the diameter ( Example: 5 on 4.5 would mean 5 bolt holes with 4.5 measure to a point halfway between the opposite bolts).

HOW TO DETERMINE WHEEL OFFSET
Offset is the distance between the mounting face of the disc and rim centerline.
INSET: Refers to the distance when the mounting face is outboard of the rim centerline.
OUTSET: Refers to the distance when the mounting face is inboard of the rim centerline.
