Replacement Hubs - 4, 5, 6 and 8 Bolt

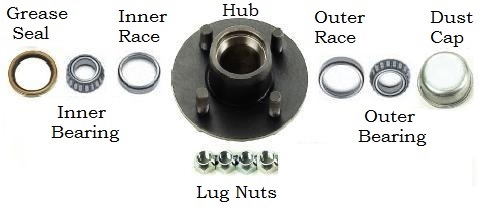

4boltimage.JPG 4 BOLT, 4" BOLT CIRCLE - FITS BT8 1" SPINDLE

L44643 Inner/ Outer Bearings. Capacity of 1,000lbs per each. Fits BT8 1" spindle. Drum size: 7" x 1-3/4". Note: Replacement hub comes with races already installed.


  HUBKIT 34822 W/L44643 BRGS/SEAL/CAP/NUTS  $31.04Quantity
  HUB ONLY 440 USES L44643 OR L44649  $19.93Quantity
  BEARING - L44643  $5.20Quantity
  RACE, FOR L44643/L44649  $3.05Quantity
  GREASE SEAL 1.983" OD x 1.249" ID (BT)  $2.73Quantity
  GREASE SEAL 1.983" OD x 1.249"ID DBL LIP (BT)  $3.41Quantity
  GREASE CAP, 1.986" OD DRIVE IN (6713)  $2.88Quantity
  SCREW IN STUD 1/2 x 2" FINE THREAD BOTH ENDS  $2.68Quantity
  DRIVE IN STUD 1/2" DIA 1 7/8"LONG(HAYES&DEX BT)  $2.18Quantity
  1/2" x 13/16"HEX WHL NUT 60 DEGREE CONED  $0.71Quantity

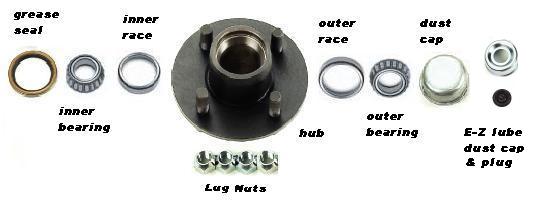

4boltimage2.JPG 4 BOLT, 4" BOLT CIRCLE - FITS DEXTER 2,000 LB AXLE

Fits Dexter 2,000 lb axle, BTR 1 1/16" spindle, L44649 inner/outer bearings. Available in standard or E-Z Lube application. Note: Replacement hub comes with races already installed.


  HUB KIT, 34822 w/ L44649 BRGS/ SEAL/ CAP/ NUTS  $31.45Quantity
  EZ HUB KIT, 34822 w/ L44649 BRGS/ SEAL/ CAP/ NUTS  $33.36Quantity
  BEARING - L44649  $5.65Quantity
  RACE, FOR L44643/L44649  $3.05Quantity
  GREASE SEAL 1.987" OD x 1.5" ID (BTR)  $2.89Quantity
  GREASE SEAL 1.987" OD x 1.5" ID, DBL LIP (BTR)  $3.61Quantity
  GREASE CAP, 1.986" OD DRIVE IN (6713)  $2.88Quantity
  GREASE CAP, 1.986" OD DRIVE IN, EZ LUBE  $2.09Quantity
  GREASE CAP PLUG, FOR EZ LUBE GREASE CAPS (RN 85-1, HEN 85-1)  $0.99Quantity
  SCREW IN STUD 1/2 x 2" FINE THREAD BOTH ENDS  $2.68Quantity
  DRIVE IN STUD 1/2" DIA 1 7/8"LONG(HAYES&DEX BT)  $2.18Quantity
  1/2" x 13/16"HEX WHL NUT 60 DEGREE CONED  $0.71Quantity
5boltimage.JPG 5 BOLT, 4.5" BOLT CIRCLE - FITS BT8 1" SPINDLE

Fits BT8 1" Spindle, L44643 inner/outer bearings. Capacity of 1,250 lbs. per each. 5 1/2" diameter hub flange, use with 8" and 10" wheels. 6 1/2" diameter hub flange, use with 12" to 15" wheels. Note: Replacement hub comes with races already installed.


  HUB KIT 34822545 W/ L44643 BRGS/SEAL/CAP/NTS  $31.56Quantity
  HUB KIT 8-258-5 W/ L44643 BRGS/SEAL/CAP/NTS  $34.57Quantity
  HUB ONLY 545, 6.5DIA FLG USES L44643 OR L44649  $24.68Quantity
  HUB ONLY 545,5.62DIA FLG USES L44643 OR L44649  $20.92Quantity
  BEARING - L44643  $5.20Quantity
  RACE, FOR L44643/L44649  $3.05Quantity
  GREASE SEAL 1.983" OD x 1.249" ID (BT)  $2.73Quantity
  GREASE SEAL 1.983" OD x 1.249"ID DBL LIP (BT)  $3.41Quantity
  GREASE CAP, 1.986" OD DRIVE IN (6713)  $2.88Quantity
  SCREW IN STUD 1/2 x 2" FINE THREAD BOTH ENDS  $2.68Quantity
  DRIVE IN STUD 1/2" DIA 1 7/8"LONG(HAYES&DEX BT)  $2.18Quantity
  1/2" x 13/16"HEX WHL NUT 60 DEGREE CONED  $0.71Quantity

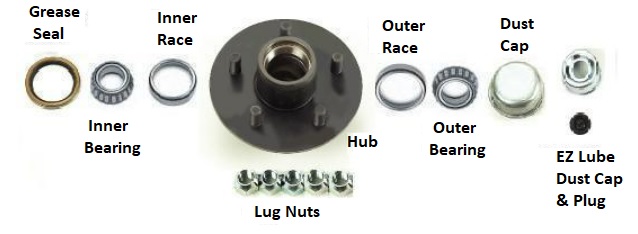

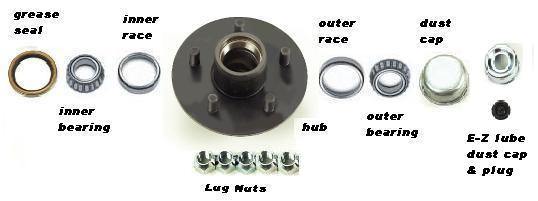

5boltimage2.JPG 5 BOLT, 4.5" BOLT CIRCLE - FITS DEXTER 2,000 LB AXLE

Fits Dexter 2,000 lb axle, BTR 1 1/16" spindle, L44649 inner/outer bearings. Available in standard or E-Z Lube application. 5 1/2" diameter hub flange, use with 8" and 10" wheels. 6 1/2" diameter hub flange, use with 12" to 15" wheels. Note: Replacement hub comes with races already installed.


  HUB KIT 34822545 W/ L44649 BRGS/SEAL/CAP/NTS  $32.66Quantity
  HUB KIT 8-258-5 W/ L44649 BRGS/SEAL/CAP/NTS  $34.95Quantity
  HUB ONLY 545, 6.5DIA FLG USES L44643 OR L44649  $24.68Quantity
  HUB ONLY 545,5.62DIA FLG USES L44643 OR L44649  $20.92Quantity
  EZ HUB KIT 34822545 W/L44649 BRGS/SEAL/CP/NT  $34.61Quantity
  EZ HUB KIT 8-258-5 W/L44649 BRGS/SEAL/CP/NT  $35.89Quantity
  BEARING - L44649  $5.65Quantity
  RACE, FOR L44643/L44649  $3.05Quantity
  GREASE SEAL 1.987" OD x 1.5" ID (BTR)  $2.89Quantity
  GREASE SEAL 1.987" OD x 1.5" ID, DBL LIP (BTR)  $3.61Quantity
  GREASE CAP, 1.986" OD DRIVE IN (6713)  $2.88Quantity
  GREASE CAP, 1.986" OD DRIVE IN, EZ LUBE  $2.09Quantity
  GREASE CAP PLUG, FOR EZ LUBE GREASE CAPS (RN 85-1, HEN 85-1)  $0.99Quantity
  SCREW IN STUD 1/2 x 2" FINE THREAD BOTH ENDS  $2.68Quantity
  DRIVE IN STUD 1/2" DIA 1 7/8"LONG(HAYES&DEX BT)  $2.18Quantity
  1/2" x 13/16"HEX WHL NUT 60 DEGREE CONED  $0.71Quantity
35005boltimage2.JPG 5 BOLT, 4.5", 4.75", 5", & 5.5" BOLT CIRCLE - FITS 3,500 LB AXLES

Used on Dexter and most 3,500 lb axles, L68149 Inner/L44649 Outer bearings. Capacity of 1,750 lbs per each. Fits #84 spindle. Standard grease or E-Z Lube Application. 4 different bolt patterns. Note: Replacement hubs come with races already installed.


  HUB KIT 84545 BRGS/SEAL/CAP/NUTS  $41.37Quantity
  HUB KIT 845475 BRGS/SEAL/CAP/NUTS  $39.45Quantity
  HUB KIT 84550 BRGS/SEAL/CAP/NUTS  $51.07Quantity
  HUB KIT 84555 BRGS/SEAL/CAP/NUTS  $36.35Quantity
  HUB ONLY 545 USES L44649 & L68149  $31.11Quantity
  HUB ONLY 5475 USES L44649 & L68419  $28.78Quantity
  HUB ONLY 550 USES L44649 & L68149  $30.95Quantity
  HUB ONLY 555 USES L44649 & L68149  $52.22Quantity
  EZ HUB KIT 84545 BRGS/SEAL/CAP/NUTS  $44.09Quantity
  EZ HUB KIT 845475 BRGS/SEAL/CAP/NUTS  $41.71Quantity
  EZ HUB KIT 84550 BRGS/SEAL/CAP/NUTS  $52.47Quantity
  EZ HUB KIT 84555 BRGS/SEAL/CAP/NUTS  $45.08Quantity
  BEARING - L44649  $5.65Quantity
  BEARING - L68149  $6.23Quantity
  RACE, FOR L44643/L44649  $3.05Quantity
  RACE, FOR L68149  $3.42Quantity
  GREASE SEAL 2.565" OD x 1.719" ID (3.5K)  $2.79Quantity
  GREASE SEAL 2.565" OD x 1.719" ID, DBL LIP(3.5K)  $3.06Quantity
  GREASE CAP, 1.986" OD DRIVE IN (6713)  $2.88Quantity
  GREASE CAP, 1.986" OD DRIVE IN, EZ LUBE  $2.09Quantity
  GREASE CAP PLUG, FOR EZ LUBE GREASE CAPS (RN 85-1, HEN 85-1)  $0.99Quantity
  DRIVE IN STUD, 1/2" DIA 1 13/16" LONG  $3.42Quantity
  1/2" x 13/16"HEX WHL NUT 60 DEGREE CONED  $0.71Quantity

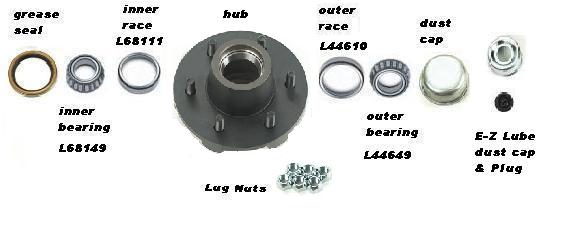

35006boltimage.JPG 6 BOLT, 5.5" BOLT CIRCLE - FITS 3,500 AXLE

Used on Dexter and most 3,500 lb axles, L68149 Inner/L44649 Outer bearings. Capacity of 1,750 lbs per each. Fits #84 spindle. Standard grease or E-Z Lube Application. 4 different bolt patterns. Note: Replacement hubs come with races already installed.


  HUB KIT 84655 BRGS/SEAL/CAP/NUTS  $44.23Quantity
  HUB ONLY 655 USES L44649 & L68149  $33.13Quantity
  EZ HUB KIT 84655 BRGS/SEAL/CAP/NUTS  $47.56Quantity
  BEARING - L44649  $5.65Quantity
  BEARING - L68149  $6.23Quantity
  RACE, FOR L44643/L44649  $3.05Quantity
  RACE, FOR L68149  $3.42Quantity
  GREASE SEAL 2.565" OD x 1.719" ID (3.5K)  $2.79Quantity
  GREASE SEAL 2.565" OD x 1.719" ID, DBL LIP(3.5K)  $3.06Quantity
  GREASE CAP, 1.986" OD DRIVE IN (6713)  $2.88Quantity
  GREASE CAP, 1.986" OD DRIVE IN, EZ LUBE  $2.09Quantity
  GREASE CAP PLUG, FOR EZ LUBE GREASE CAPS (RN 85-1, HEN 85-1)  $0.99Quantity
  DRIVE IN STUD, 1/2" DIA 1 13/16" LONG  $3.42Quantity
  1/2" x 13/16"HEX WHL NUT 60 DEGREE CONED  $0.71Quantity

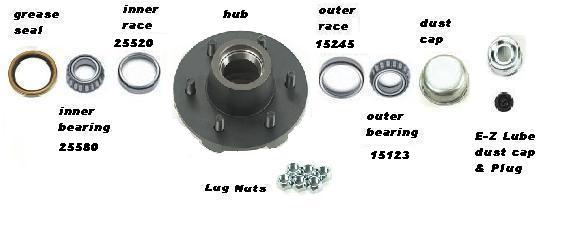

6bolt5200image.JPG 6 BOLT, 5.5" BOLT CIRCLE - FITS DEXTER 5,200 LB - 6,000 LB AXLES

Fits Dexter 5,200 lb and 6,000 lb axles. Capacity of 3,000 lbs per each. Standard Grease or E-Z Lube applications. 25580 Inner/15123 Outer Bearings. For spindles requiring 2 1/8", or 2 1/4" I.D. Grease Seal. Note: Replacement hubs come with races already installed.


  HUB KIT 42655 BRGS/ 2.125" SEAL/CAP/NUTS  $40.55Quantity
  HUB KIT 42655 BRGS/ 2.25" SEAL/CAP/NUTS  $68.92Quantity
  HUB ONLY 655 USES 15123 & 25580  $54.49Quantity
  EZ HUB KIT 42655 BRGS/2.125" SEAL/CAP/NTS  $71.97Quantity
  EZ HUB KIT 42655 BRGS/2.25" SEAL/CAP/NUTS  $69.95Quantity
  BEARING - 15123  $7.76Quantity
  BEARING - 25580  $10.13Quantity
  RACE, FOR 15123  $3.09Quantity
  RACE, FOR 25580  $5.05Quantity
  GREASE SEAL 3.376" OD x 2.125" ID (60R-7K)  $4.64Quantity
  GREASE SEAL 3.376" OD x 2.125"ID DBL LIP(60R-7K)  $4.95Quantity
  GREASE SEAL 3.376" OD x 2.25" ID (60R-7K)  $2.89Quantity
  GREASE SEAL 3.376" OD x 2.25"ID DBL LIP (60R-7K)  $3.41Quantity
  GREASE CAP, 2.44" OD DRIVE IN (6712)  $2.38Quantity
  GREASE CAP, 2.44" OD DRIVE IN, EZ LUBE  $2.48Quantity
  GREASE CAP PLUG, FOR EZ LUBE GREASE CAPS (RN 85-1, HEN 85-1)  $0.99Quantity
  DRIVE IN STUD, 1/2" DIA 1 13/16" LONG  $3.42Quantity
  1/2" x 13/16"HEX WHL NUT 60 DEGREE CONED  $0.71Quantity
6bolt5200image2.JPG 6 BOLT, 5.5" BOLT CIRCLE - FITS DEXTER 5,200 - 6,000 LB AXLES - 2 1/8" GREASE SEAL

Fits Dexter 5,200 lb and 6,000 lb axles. Capacity of 3,000 lbs per each. Standard Grease or E-Z Lube applications. 25580 Inner/LM67048 Outer Bearings. For spindles requiring 2 1/8" I.D. Grease Seal. Note: Replacement hubs come with races already installed.


  HUB KIT 8-213-5 BRGS/2.125"SEAL/CAP/NUTS  $69.57Quantity
  HUB ONLY 655 USES LM67048 & 25580  $32.95Quantity
  EZ HUB KIT 8-213-5 BRGS/2.125"SEAL/CAP/NUTS  $71.90Quantity
  BEARING - 25580  $10.13Quantity
  BEARING - LM67048  $7.99Quantity
  RACE, FOR 25580  $5.05Quantity
  RACE, FOR LM67048  $6.21Quantity
  GREASE SEAL 3.376" OD x 2.125" ID (60R-7K)  $4.64Quantity
  GREASE SEAL 3.376" OD x 2.125"ID DBL LIP(60R-7K)  $4.95Quantity
  GREASE CAP, 2.44" OD DRIVE IN (6712)  $2.38Quantity
  GREASE CAP, 2.44" OD DRIVE IN, EZ LUBE  $2.48Quantity
  DRIVE IN STUD, 1/2" DIA 1 13/16" LONG  $3.42Quantity
  1/2" x 13/16"HEX WHL NUT 60 DEGREE CONED  $0.71Quantity

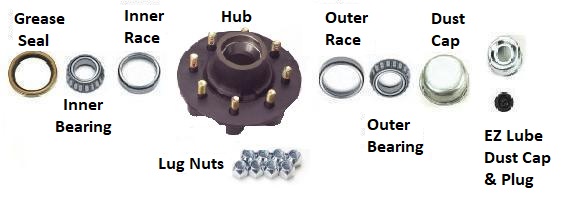

8boltimage.JPG 8 BOLT, 6.5" BOLT CIRCLE - FITS DEXTER 5,200 - 7,000 LB AXLES

Fits Dexter 5,200 lb through 7,000 lb axles. Capacity of 3,500 lbs per each. 25580 Inner/14125A Outer Bearings. For spindles requiring 2 1/8" or 2 1/4" I.D. Seals. Standard grease or E-Z lube or Oil bath applications.Note: Replacement hubs come with races already installed.


  HUB KIT 42865 BRGS/2.25"SEAL/CAP/NUTS  $91.18Quantity
  HUB ONLY 655 USES LM67048 & 25580  $32.95Quantity
  HUB ONLY 865 USES 14125A & 25580  $44.95Quantity
  EZ HUB KIT 42865 BRGS/2.125"SEAL/CAP/NUTS  $95.84Quantity
  EZ HUB KIT 42865 BRGS/2.25"SEAL/CAP/NUTS  $95.94Quantity
  OIL HUB KIT 8-231-16 BRGS/2.125"SEAL/CAP/NUTS  $125.69Quantity
  OIL HUB KIT 8-231-16 BRGS/2.25"SEAL/CAP/NUTS  $155.87Quantity
  OIL HUB ONLY 865 USES 14125A & 25580  $102.90Quantity
  BEARING - 14125A  $8.95Quantity
  BEARING - 25580  $10.13Quantity
  RACE, FOR 25580  $5.05Quantity
  RACE FOR 14125A  $3.79Quantity
  GREASE SEAL 3.376" OD x 2.125" ID (60R-7K)  $4.64Quantity
  GREASE SEAL 3.376" OD x 2.125"ID DBL LIP(60R-7K)  $4.95Quantity
  GREASE SEAL 3.376" OD x 2.25" ID (60R-7K)  $2.89Quantity
  GREASE SEAL 3.376" OD x 2.25"ID DBL LIP (60R-7K)  $3.41Quantity
  GREASE CAP, 2.72" OD DRIVE IN (6711)  $4.07Quantity
  GREASE CAP, 2.72" OD DRIVE IN, EZ LUBE  $2.50Quantity
  GREASE CAP PLUG, FOR EZ LUBE GREASE CAPS (RN 85-1, HEN 85-1)  $0.99Quantity
  OIL HUB PLUG USE W/OIL TYPE HUB & DRUMS  $2.69Quantity
  UNITIZED OIL SEAL (3.376" O.D., 2.25" I.D.)  $18.53Quantity
  OIL CAP KIT, (21-35 CAP, 10-45 O-RING, 46-32 PLUG)  $8.47Quantity
  DRIVE IN STUD, 1/2" DIA 1 13/16" LONG  $3.42Quantity
  1/2" x 13/16"HEX WHL NUT 60 DEGREE CONED  $0.71Quantity
8k8boltimage.JPG 8 BOLT, 6.5" BOLT CIRCLE - FITS DEXTER 8,000 LB AXLES

Fits Dexter 8,000 lb axles. 25580 Inner/02475 Outer Bearings. Hub comes with 9/16" studs. Oil bath hubs. Note: Replacement hubs come with races already installed.


  OIL HUB KIT 8-287-14 BRGS/SEAL/CAP/NUTS  $144.64Quantity
  HUB ONLY 865 4.75PLT OIL 9/16STD USES 02475/25580  $96.40Quantity
  BEARING - 02475  $12.95Quantity
  BEARING - 25580  $10.13Quantity
  RACE, FOR 02475  $7.95Quantity
  RACE, FOR 25580  $5.05Quantity
  OIL SEAL 3.376ODx2.375ID USE W/60-6 WEAR SLEEVE  $11.76Quantity
  UNITIZED OIL SEAL (3.376" O.D., 2.25" I.D.)  $18.53Quantity
  OIL SEAL WEAR SLEEVE,USE W/10-48 OIL SEAL  $15.96Quantity
  OIL CAP KIT, (21-35 CAP, 10-45 O-RING, 46-32 PLUG)  $8.47Quantity
  OIL HUB PLUG USE W/OIL TYPE HUB & DRUMS  $2.69Quantity
  SCREW IN STUD 9/16" x 3" FINE 1 END, COARSE 1 END  $2.31Quantity
  DRIVE IN STUD, 5/8" DIA 3 1/8" LONG (TJ34267)  $3.99Quantity
  DRIVE IN STUD, 9/16" DIA 2 5/16" LONG  $2.05Quantity
  5/8"x 1 1/16" HEX WHEEL NUT RH, 90 DEGREE CONED  $0.96Quantity
  9/16" x 7/8"HEX WHL NUT RH, 60 DEGREE CONED"  $0.97Quantity
