Tail, Signal, Stop Lights

BARGMAN SURFACE MOUNT #92 SERIES TAIL LIGHTS

Radius styling is the key to the smooth flowing design used in the #92 series tail light. These lights offer maximum design and replacement flexibility. All include automotive corrosion resistant bulb sockets and 16 gauge supply and ground wiring, and meet and exceed DOT requirements. Designed for long life and easy installation. FOR HORIZONTAL MOUNTING ONLY. 8-9/16" x 4-9/16" x 2-1/8". White bases.



WESBAR SUBMERSIBLE TAIL LIGHT/ WIRING KIT

Kit contains: pair of submersible tail lights (right and left), license plate bracket, 20 ft. wishbone harness, 4-ft. trunk connector, and hardware.

$51.95 760975 Quantity:

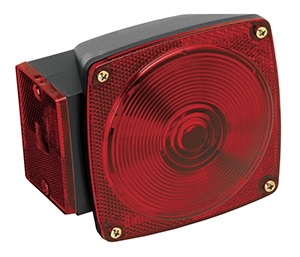

WESBAR SUBMERSIBLE TAIL LIGHTS 6-WAY

Designed to protect both the bulbs and the contacts when the trailer is submerged during launching. The unit is completely sealed. Gasketed lenses keep the water out, and are easily replaced if necessary. Closed bottom prevents road grit, or tough water during launching, from entering the lamp. The most widely used lamp of its type by boat trailer manufacturers. Has 11" pre/installed wire leads, and two 1/4" mounting studs on 2" centers. Poly bagged. Black finish.



BARGMAN RECESSED #84 SERIES TAIL LIGHTS

Bargman captures the distinctive RV "black anodized, radius corner" trim styling in an innovative light series. Stylish talc-filled polypropylene bases are impervious to UV and weather exposure. Clear back-up light lenses are surrounded by a Class "A" red reflex lens; all meet DOT photometric requirements, SAE specs. Bulbs mount firmly in heavy-duty J-slot bayonet sockets for dependable flicker-free operation. HORIZONTAL MOUNT, 3 COMPARTMENT: Cutout: 12-11/16" x 5-1/2"; overall: 14-1/6" x 6-15/16" x 1-1/4" with 1" depth. HORIZONTAL MOUNT, 2 COMPARTMENT: Cutout: 8-7/16" x 5-1/2" x; overall: 9-13/16" x 6-15/16" x 1-1/4" with 1" depth. VERTICAL MOUNT, 3 COMPARTMENT: Cutout: 12-11/16" x 5-1/2"; overall: 14-1/16" x 6-15/16" x 1-1/4" with 1" depth.



WESBAR SUBMERSIBLE OVER 80" TAIL LIGHTS

These "Over 80" lights are also designed expressly for the wide trailers. They incorporate all the features of Wesbar's submersible tail light, plus have the extra ceature of a "built-in" submersible rear clearance light. Fits most standard tail light mounting brackets. Say goodbye to tail light problems- go with submersibles.

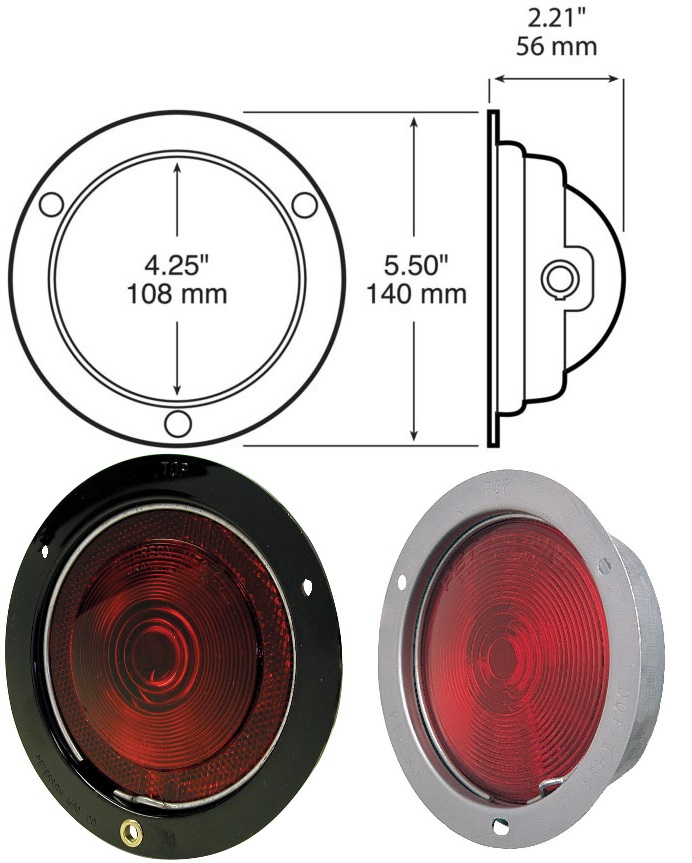

FLUSH MOUNT STOP, TURN AND TAIL LIGHT

These Flush Mount Lights provide stop, turn and tail light functions. Choose from a steel housing with black enamel finish or a 304 stainless steel housing with satin finish. Steel housing lights come with either brass or VIBAR bulb sockets. All three types come with regular, or reflex reflector optics around the periphery of the lens. All six lights feature a snap ring retaining wire to secure the lens and a #1157 (12v) bulb.



PEDESTEL MOUNT STOP, TURN AND TAIL LIGHT

This durable light has a black 4 1/8” ABS housing with a snap-on red lens that functions as a stop, turn and tail light. Two lead wires exit through 1/2” diameter hollow stud. It contains a #1157 bulb.



STUD MOUNT STOP, TURN AND TAIL LIGHT

Stud Mount Three Function Lights perform as stop, turn and tail lights. Four Function Light performs all the same functions, plus a license illuminator. Both feature wrap-over-lens retained by two screws onto a black plastic housing making the light dust resistant. 1/4" studs include mounting hardware. Contains a #1157 bulb. Part #445 is standard on trucks such as Peterbuilt, Mack, White and Jeep.

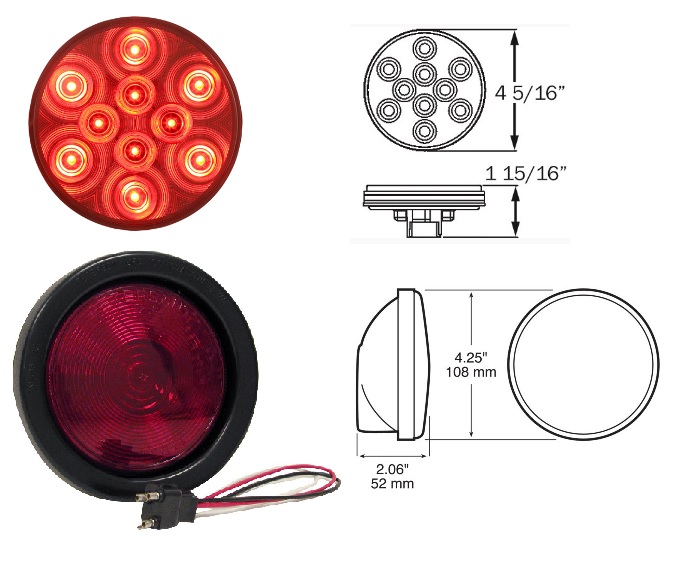

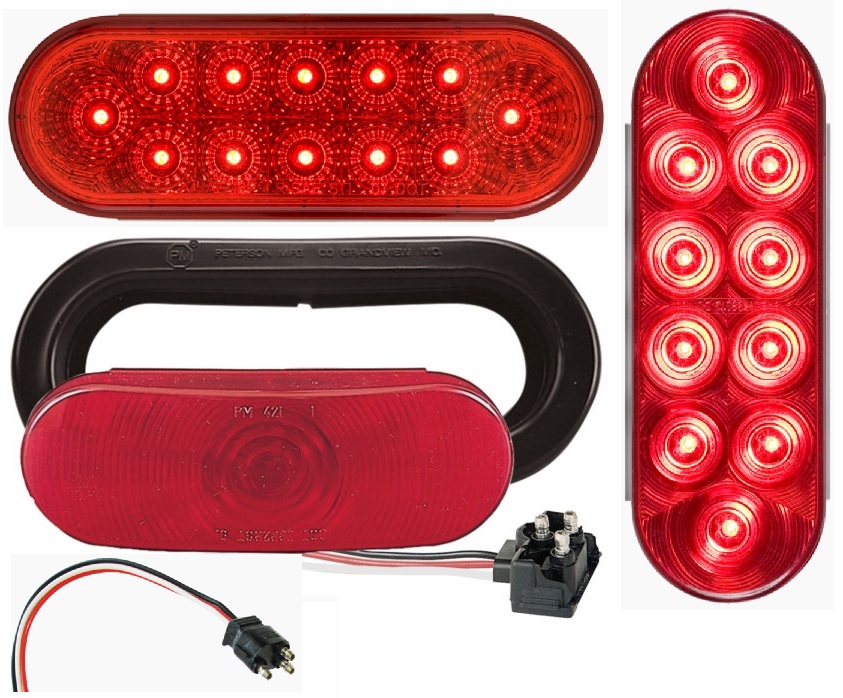

L.E.D. TRAILER LIGHTS

Light Emitting Diode (L.E.D.) trailer lights offer many functional benefits over traditional incandescent trailer lights. Benefits include lower amperage draw, longer life and better resistance to failure due to vibration. In addition, our L.E.D. lights fit into existing incandescent lighting configurations. Oval and round stop, turn and tail lights pictured with grommets, sold separately.



RECTANGULAR MULTI-FUNCTION COMBINATION TAIL LIGHT

This Multi-Function Rear Light has a corrosion resistant molded housing and bronze contacts. No plug is required; simply insert the wire ends for a secure connection. Right Hand Light performs as a stop, turn and taillight, rear and side reflector, side marker. Rear Left Hand Light performs the same, plus has a license illuminator. 440 series lights contain a #1157 and a #1895 bulb. 444 series lights contain a #1157 and a #193 bulb.



SEALED SIDEMARKER/TURN SIGNAL LIGHT

Lexan® housing and lenses are sonic welded to provide a permanent seal. Meets SAE recommended practice for side turn signals, while providing marker and reflector functions. Includes grommet and plug. Often used with mounting bracket #421-09.



FLUSH MOUNT SEALED STOP, TURN AND TAIL LIGHT

These Flush Mount Sealed Lights feature a Lexan housing and lens that's permanently sealed by a fusion bonding process. The bulb floats in a VIBAR socket for extended life. The exclusive wire connection port offers maximum corrosion protection when used with the plug and mounting grommet provided. Kit contains the grommet and plug necessary for installation.



FLUSH MOUNT SEALED TURN SIGNAL LIGHT

This unit is completely sealed in a Lexan housing and lens, and the bulb is shock mounted to protect it from wear and tear. This advanced design virtually eliminates rust, corrosion, filament fracture and installation or removal problems. Light is ideal for narrow widths. It is legal in either horizontal or vertical mount. The kit contains the grommet, plug and grounding screw necessary for installation.



SURFACE MOUNT SEALED LOW PROFILE TAIL LIGHT

Hermetically sealed to protect the bulb and electrical contacts from damage by water or corrosion. Right Hand Light performs as a stop, turn and tail light, rear and side reflector, side marker and rear clearance. Left Hand Light performs the same, plus has a license illuminator.



SEALED LICENSE PLATE LIGHT

This all Lexan® sealed License Illumination Light meets all federal specifications when properly mounted. Comes with plug.



LICENSE PLATE LIGHT-VIBAR

This light features Lexan housing retained with a steel screw and a VIBAR socket to extend the bulb life. All internal parts are stainless steel or brass. The 436B includes a heavy gauge black steel bracket for license attachment and includes mounting hardware. Contains a #168 bulb.



ANDERSON 441 SERIES SUBMERSIBLE TAIL LIGHTS

"Belljar" submersible stop and tail lights with gasketed lenses which provide seal to prevent water from entering lamp. The 79660 kit includes 441 & 441L tail lights, two 108WA marker lights, license bracket, 20' split harness, mounting hardware and instructions. Viz packed.



PETERSON SURFACE MOUNT TAIL LIGHT FITS BARGMAN #91 SERIES

This multi-functional tail light has Class "A" reflex reflectors. The acrylic lens meets all DOT and SAE requirements. The base of the light is made with ABS. Lights include quick connect installation and has 16 gauge ground wire. Base is white. (Backup lights designed for horizontal mounting only.) Surface moun. 8-5/8" x 4-5/8" x 2". White base.



COMBINATION STOP-TAIL-TURN LIGHTS

This light has been discontinued. The only replacement part still available is the Red Side Lens.



PETERSON SURFACE MOUNT COMBINATION TAIL LIGHT

Multi-function tail light exceeds DOT requirements for stop, turn, tail and rear reflector. High impact housing will not corrode and tail light exceeds 12 sq. inches of luminous lens area. Approved for vehicles over 80" wide. Comes with or without license illuminator and built-in license plate bracket. Replacement lenses available. Lens size: 8-13/16"W x 5-1/6"H x 2-3/4"D. Bracket Size: 9-7/8"W x 6-1/8"H. Grounds through mounting hardware. Uses 1157 bulb.



WESBAR SUBMERSIBLE OVER 80" TAIL LAMPS

Complies with DOT requirements for trailers 80" wide or wider, when propely mounted. Includes stop, turn, tail, side marker, rear clearance, rear & side relectors and license plate illuminator functions. Durable high impact acrylic lens sonically sealed to base (eliminates gaskets). Plated steel hardware included. Comes w/ 2-way 1' pigtail w/ molded plug & 6" ground wire with ring terminal for easy installation. 6"W x 3.5"H x 2.25"D.



ANDERSON OVER 80" SUBMERSIBLE LIGHTS

A combination clearance/ marker/ reflector light. 3-1/16" x 2-1/4" x 1-1/4" lens and housing sonically welded for a totally sealed light. The bulb is shock mounted in a patented Vibar socket.
