Electric-Hydraulic Brake Systems
ATTWOOD BRAKE ACTUATORS
Atwood Actuators have a heavy gauge stamped steel housing, with a ball socket assembly. Breakaway mechanism sets and locks the trailer brakes in the event of tow vehicle/trailer separation. The unique pivot linkage permits a lightweight, more compact design. The electrodeposited enamel finish exceeds A.S.T.M. 96-hour salt-spray test requirements, providing corrosion protection. The "Reverse Lock-Out" lever allows for easier backing up of trailer.
ATTWOOD 6K ACTUATOR, 2" CPLR, PAINTED 82543
ATTWOOD 8K ACTUATOR, 2" CPLR, PAINTED, WELD-ON
ATTWOOD 8K ACTUATOR, 2" CPLR, PLATED, BOLT-ON
ATTWOOD REPL BOOT KIT FOR 82541 ACTUATOR
TWOOD REPL ACT. SHOCK, AFTER 1980 (82541) TJ5122
ATTWOOD REPL M-CYL FOR 82541 ACT AFTER 1980 (85841)
ATTWOOD REPL PUSH ROD 82541 ACTUATOR
ATTWOOD REPL MSTR CYL CAP & GASKET FOR 82541(5507)

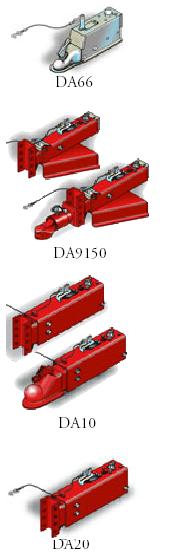

DEMCO BRAKE ACTUATORS
Demco hydraulic brake actuators are specifically designed to perform even in the harshest braking environments. The master cylinder cap has an automotive-style diaphragm for a completely enclosed brake system, preventing brake fluid contamination. Master cylinder pushrod is covered by a rubber boot for additional dirt and moisture protection. DA66 & DA9150 actuators utilize heavy-duty self lubricating rollers, DA10 & DA20 use UHMW nylon wear pads, totally eliminating the potential for roller “freeze-up”. Common repair parts are interchangeable between models, minimizing the need for large service parts inventory.
DEMCO ACTUATOR CAP FOR MASTER CYLINDER FITS ALL MODELS
DEMCO DRUM BRAKE ACTUATOR MASTER CYL, FITS ALL MODELS
DEMCO BRKY CABLE & LEVER FITS DA91, DA10, DA20
DEMCO DA10 10K ACTUATOR W/2 5/16" FIXED COUPLER
DEMCO DA10 10K ACTUATOR W/ADJ CHANNEL ONLY
DEMCO DA10 ACTUATOR W/3" ADJ LUNETTE EYE
DEMCO DA10 ACTUATOR W/Primed, channel center, standard outer case
DEMCO DA10 ACTUATOR WITH 2 5/16" ADJ ATWOOD CPLR
DEMCO DA10 ACTUATOR WITH 2 5/16" ADJ H-BLOW CPLR
DEMCO DA20 20K ACTUATOR W/ADJ CHANNEL ONLY
DEMCO DA20 ACTUATOR W/ 12K 2 5/16"ADJ ATWD CPLR
DEMCO DA20 ACTUATOR W/ 3" ADJ LUNETTE EYE
DEMCO DA9150 7.5K ACT A-FRAME W/ADJ CHANL ONLY
DEMCO DA9150 7.5K ACT W/ 2 5/16" ADJ H-BLOW CPLR
DEMCO DA9150 7.5K ACT W/ 2" ADJ H-BLOW 7K COUPLER
DEMCO SHOCK, FITS DA66 ACTUATORS
DEMCO SHOCK, FITS DA91, DA10, DA20 ACTUATORS
TOLEDO BRAKE ACTUATORS
This Toledo Actuator has a rugged design with standard 50 degree A-frame mount flange. It has a breakaway device which sets and locks the trailer brakes in the event of tow vehicle/ trailer separation. The unique shock absorber/coil spring design of this Actuator provides smooth positive stopping power, eliminating the possibility of damaging peak pressures to the system. 5,000–6,000 G.V.W.R. capacity, depending on coupler used.
TOLEDO TA6 ACT 2" H-BLOW CPLR, A-FRAME 5K
TOLEDO TA6 ACT 2 5/16" H-B CPLR, A-FRAME 6K
REP'L NYLN PIVOT BUSHING FOR TOLEDO TA-6
1/2 SELF-LOCK PVT SHFT NUT FOR TOLEDO TA-6
REP'L PIVOT LINK FOR TA6 (4 REQ'D PER ACTUATOR)
PVT SHFT FOR TOLEDO TA-6 (4 REQ'D PER ACTUATOR)
REP'L SHOCK FOR TOLEDO TA6 ACTUATOR
REP'L MSTR CYL CAP FOR TOLEDO TA6 ACTUATOR
REPL MASTER CYLINDER FOR TOLEDO TA-6 ACTUATOR
HYDRAULIC BRAKE SURGE ACTUATORS
With a hydralic brake surge actuator, no seperate brake controls or connections are needed in the towing vehicle. The actuator applies the trailer brakes automatically with proportional force when the tow vehicles brakes are applied. It is simple to install an doperate, and also offers breakaway protection. A break line kit is also needed to complete the system.
DICO 6000LBS LEVER LOCK 2" ACTUATOR FOR 3" WIDE TOUNGE, BOLT/WELD-ON APPLICATION, ZINC PLATED.
REPLACEMENT DICO 60 MASTER CYLINDER FOR 5105
2-5/16" 10,000# ACTUATOR FOR 3" WIDE TOUNGE, WELD-ON APPLICATION, PAINTED. USAGE LIMITED TO RECREATIONAL AND LIGHT INDUSTRIAL TRAILERS TOWED BY PASSENGER CARS OR LIGHT TRUCKS.
2-5/16" 10,000# ADJUSTABLE ACTUATOR FOR 3" WIDE TOUNGE, WELD ON APPLICATION, PAINTED. USAGE LIMITED TO RECREATIONAL AND LIGHT INDUSTRIAL TRAILERS TOWED BY PASSENGER CARS OR LIGHT TRUCKS.
2-5/16" 12,000# ADJUSTABLE ACTUATOR FOR 3" WIDE TOUNGE, WELD-ON APPLICATION, PAINTED. USAGE LIMITED TO RECREATIONAL AND LIGHT INDUSTRIAL TRAILERS TOWED BY PASSENGER CARS OR LIGHT TRUCKS.
REPLACEMENT MASTER CYLINDER FOR MODEL 10 ACTUATOR
HYDRAULIC LINE KITS
Redline Hydraulic Line Kits come complete with all necessary lines, tee fittings, hoses, brackets and clips to properly plumb conventional hydraulic brake axles. Torsion axles require additional line kits, (80910, or 80910-T), or use 9579-2 Deluxe kit with limited access flex hoses included.
HYD LINE KIT SINGLE AXLE DRUM
HYD LINE KIT TANDEM AXLE DELUXE DRUM
HYD LINE KIT, 3RD AXLE, DELUXE DRUM
HYD LINE KIT, 3RD AXLE, FOR VAC&AIR/HYD SYS,DRUM
HYDRAULIC SOLENOID LINE LOCK
12 volt solenoid. Male on one end female on the other. Attaching this Solenoid inline and supplying power from the back up light circuit on the tow vehicle will lock out the brakes while backing up.
