Replacement Hub and Drum Assemblies - 4, 5, 6 and 8 Bolt

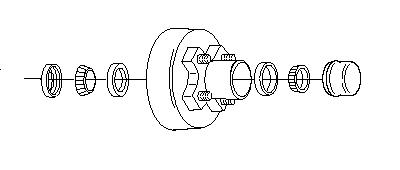

Hub kit and components for 2,000 lb axles
4 BOLT, 4" BOLT CIRCLE - FITS BT8 1" SPINDLE
Hub kits and components for BT8 1" Spindle. Drum Size 7" x 1 3/4". Capacity of 1,250 lbs per each.
65166 - HUB/DRUM ONLY - 4 ON 4 BOLT PATTERN - USES L44643 OR L44649 BEARINGS - FOR 7" BRAKES $71.9544643 - BEARING #L44643 - 1.000" I.D. $8.4944610 - BEARING RACE FOR L44643 & L44649 BEARINGS $4.4960040 - GREASE SEAL - 1.983" OD x 1.250"ID DOUBLE LIP $2.4967131 - GREASE CAP, DRIVE-IN, 1.986" OD (NOT FOR EZ LUBE) $3.9534155 - SCREW IN STUD 1/2 x 2" FINE THREAD BOTH ENDS $5.9538091 - 1/2"-20 STANDARD HEX LUG NUT 60 DEGREE-CONED $0.65
Add To Cart

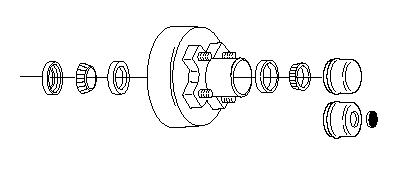

Hub kit and components for 2,000 lb axles
4 BOLT, 4" BOLT CIRCLE - FITS 1 1/16" SPINDLE

Fits Dexter 2,000 lb axle with a 1 1/16" spindle. Standard Grease or E-Z lube application.
Drum size 7" x 1 3/4".

8-173-16UC3-EZ - EZ LUBE HUB/DRUM KIT, USES L44649 BEARINGS, INCLUDES SEAL,CAP,NUTS,BEARINGS $162.198-173-16UC3 - HUB/DRUM KIT, USES L44649 BEARING- INCLUDES SEAL,CAP,NUTS,BEARINGS $160.8965166 - HUB/DRUM ONLY - 4 ON 4 BOLT PATTERN - USES L44643 OR L44649 BEARINGS - FOR 7" BRAKES $71.9544649 - BEARING #L44649 - 1.063" I.D. $6.9944610 - BEARING RACE FOR L44643 & L44649 BEARINGS $4.4960080 - GREASE SEAL - 1.987" OD x 1.5" ID SINGLE LIP $3.4960070 - GREASE SEAL - 1.987" OD x 1.5" ID, DOUBLE LIP $2.4967131 - GREASE CAP, DRIVE-IN, 1.986" OD (NOT FOR EZ LUBE) $3.9567091 - GREASE CAP, DRIVE-IN, EZ LUBE, 1.986" OD (REQUIRES #67211 RUBBER PLUG) $2.5967211 - RUBBER PLUG FOR EZ LUBE GREASE CAPS 2K - 7K $1.2534155 - SCREW IN STUD 1/2 x 2" FINE THREAD BOTH ENDS $5.9538091 - 1/2"-20 STANDARD HEX LUG NUT 60 DEGREE-CONED $0.65
Add To Cart
5 bolt hub kit and components for 1

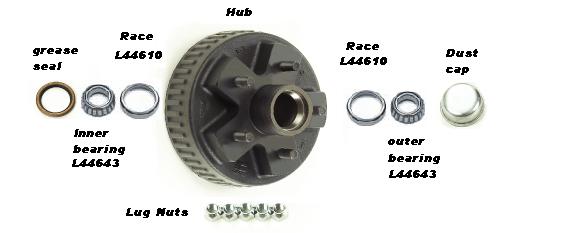

5 BOLT HUB/DRUM, 4.5" BOLT CIRCLE - FITS BT8 1" SPINDLES (2,000 LB AXLES)

Fits BT8 1" Spindle. Capacity of 1,250 lbs per each. Drum size 7" x 1 3/4". Note: Replacement hub and drum comes with races already installed.

8-257-5 HUB & DRUM ONLY 5 BOLT USES L44643 OR L44649 BEARINGS FOR 7" X 1 3/4" BRAKES $114.9644643 - BEARING #L44643 - 1.000" I.D. $8.4944610 - BEARING RACE FOR L44643 & L44649 BEARINGS $4.4960040 - GREASE SEAL - 1.983" OD x 1.250"ID DOUBLE LIP $2.4967131 - GREASE CAP, DRIVE-IN, 1.986" OD (NOT FOR EZ LUBE) $3.9534155 - SCREW IN STUD 1/2 x 2" FINE THREAD BOTH ENDS $5.9538091 - 1/2"-20 STANDARD HEX LUG NUT 60 DEGREE-CONED $0.65
Add To Cart

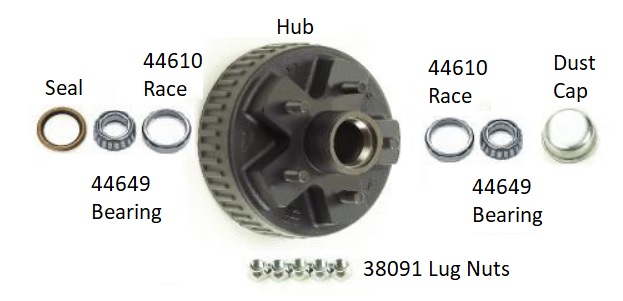

5 bolt hub kit and components for 1 1/16
5 BOLT IDLER HUB, 4.5" BOLT CIRCLE - 1 1/16" SPINDLE (2,000 LBS. PER PAIR)

Fits Dexter 2,000 lb axle with 1 1/16" Spindle. Available in Standard Grease or E-Z Lube Application. Drum size 7" x 1 3/4". Note: Replacement hub and drum come with races already installed.

8-257-UC3-EZ HUB & DRUM KIT, EZ-LUBE, USES L44649 BEARINGS, INCLUDES SEAL, CAP, NUTS, BEARINGS $134.498-257-5 HUB & DRUM ONLY 5 BOLT USES L44643 OR L44649 BEARINGS FOR 7" X 1 3/4" BRAKES $114.9644649 - BEARING #L44649 - 1.063" I.D. $6.9944610 - BEARING RACE FOR L44643 & L44649 BEARINGS $4.4960080 - GREASE SEAL - 1.987" OD x 1.5" ID SINGLE LIP $3.4960070 - GREASE SEAL - 1.987" OD x 1.5" ID, DOUBLE LIP $2.4967131 - GREASE CAP, DRIVE-IN, 1.986" OD (NOT FOR EZ LUBE) $3.9567091 - GREASE CAP, DRIVE-IN, EZ LUBE, 1.986" OD (REQUIRES #67211 RUBBER PLUG) $2.5967211 - RUBBER PLUG FOR EZ LUBE GREASE CAPS 2K - 7K $1.2534155 - SCREW IN STUD 1/2 x 2" FINE THREAD BOTH ENDS $5.9538091 - 1/2"-20 STANDARD HEX LUG NUT 60 DEGREE-CONED $0.65
Add To Cart

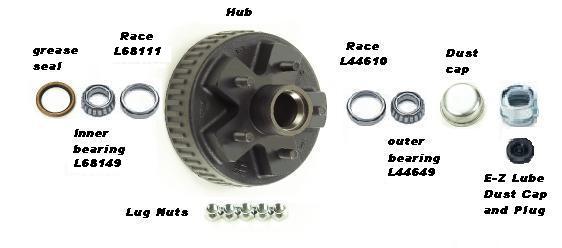

5 BOLT HUB/DRUM - VARIOUS BOLT PATTERNS - 1,750 LB CAPACITY (3,500 LB. PER PAIR)
5 BOLT HUB/DRUM - VARIOUS BOLT PATTERNS - 1,750 LB CAPACITY (3,500 LB. PER PAIR)

Fits most 3,500 lb axles including Dexter, LCI, Alko, Henderson, and Rockwell.
Note: Replacement hub & drum come with races already installed.

63011 - HUB & DRUM ONLY, 10", 5 ON 4.5" BOLT PATTERN, USES L44649 & L68149 BEARINGS $63.9963022 - HUB & DRUM ONLY, 10", 5 ON 4.75" BOLT PATTERN, USES L44649 & L68149 BEARINGS $95.9564001 - HUB & DRUM ONLY, 10", 5 ON 5" BOLT PATTERN, USES L44649 & L68149 BEARINGS $110.9563021 - HUB & DRUM ONLY, 10", 5 ON 5.5" BOLT PATTERN, USES L44649 & L68149 BEARINGS $135.9544649 - BEARING #L44649 - 1.063" I.D. $6.9968149 - BEARING #L68149 - 1.378" I.D. $7.9544610 - BEARING RACE FOR L44643 & L44649 BEARINGS $4.4968111 - BEARING RACE FOR L68149 BEARINGS $3.9961031 - GREASE SEAL, DOUBLE LIP 2.565" OD,1.719" ID $3.9567131 - GREASE CAP, DRIVE-IN, 1.986" OD (NOT FOR EZ LUBE) $3.9567091 - GREASE CAP, DRIVE-IN, EZ LUBE, 1.986" OD (REQUIRES #67211 RUBBER PLUG) $2.5967211 - RUBBER PLUG FOR EZ LUBE GREASE CAPS 2K - 7K $1.2534311 - DRIVE IN STUD, 1/2" DIA,1 13/16" LONG $4.9538091 - 1/2"-20 STANDARD HEX LUG NUT 60 DEGREE-CONED $0.65
Add To Cart
HD 5 SPOKE, UTILITY TYPE - 3,500 LB CAPACITY
HD 5 SPOKE, UTILITY TYPE - 3,500 LB CAPACITY
$0.00

Fits Spindles requiring 2 1/8" or 2 1/4" I.D. Seals. Capacity of 3,500 lbs per each. Standard Grease, E-Z Lube or Oil bath Application. Drum size 12" x 2". Note: Replacement hub and drum comes with races already installed.

6 BOLT HUB/DRUM, 5.5

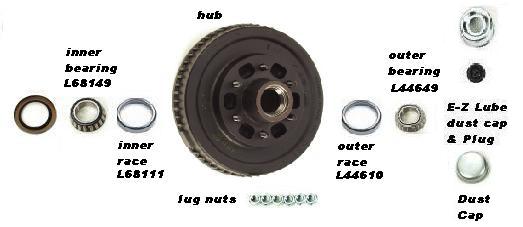

6 BOLT HUB/DRUM, 5.5" BOLT CIRCLE - 1,750 LB CAPACITY (3,500 LB. PER PAIR)

Fits Dexter 3,500 lb axles and most 3,500 lb axles.
Capacity of 1,750 lbs per each. Available in Standard Grease
or E-Z Lube Application. Drum size 10" x 2 1/4".

Note: Replacement hub and drum come with races already installed.

61181 - HUB & DRUM ONLY 6 LUG 6 ON 5.5" - USES L44649 & L68149 - 10" DIAMETER $85.9544649 - BEARING #L44649 - 1.063" I.D. $6.9968149 - BEARING #L68149 - 1.378" I.D. $7.9544610 - BEARING RACE FOR L44643 & L44649 BEARINGS $4.4968111 - BEARING RACE FOR L68149 BEARINGS $3.9967131 - GREASE CAP, DRIVE-IN, 1.986" OD (NOT FOR EZ LUBE) $3.9567091 - GREASE CAP, DRIVE-IN, EZ LUBE, 1.986" OD (REQUIRES #67211 RUBBER PLUG) $2.5967211 - RUBBER PLUG FOR EZ LUBE GREASE CAPS 2K - 7K $1.2534311 - DRIVE IN STUD, 1/2" DIA,1 13/16" LONG $4.9538091 - 1/2"-20 STANDARD HEX LUG NUT 60 DEGREE-CONED $0.65
Add To Cart
HD 6 BOLT, 5.5
HD 6 BOLT, 5.5" BOLT CIRCLE - 3,000 LB CAPACITY
$0.00

Fits Dexter 5,200 and 6,000 lb axles. Capacity of 3,000 lbs per each. Available in Standard Grease or E-Z Lube application. Drum size 12" x 2". Note: Replacement hub and drum comes with races already installed.

HD 6 BOLT, 5.5
HD 6 BOLT, 5.5" BOLT CIRCLE - 3,000 LB CAPACITY - 2 1/8" or 2 1/4" I.D.
$0.00

Fits Dexter 5,200 and 6,000 lb axles. Capacity of 3,000 lbs per each. For spindles requiring a 2 1/8" or 2 1/4" I.D. Grease Seal. Drum size 12" x 2". Note: Replacement hub and drum comes with races already installed.

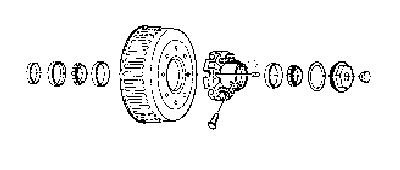

HD 8 BOLT, 6,5
HD 8 BOLT, 6,5" BOLT CIRCLE - 5,000 LB CAPACITY
$0.00
Fits Dexter 9,000 lb axles and 10,000 lb general duty axles. Capacity of 5,000 lbs per each. Drum size 12 1/4" by 3 3/8". Drum available with ABS exciter ring installed.
HD 8 BOLT, 6.5
HD 8 BOLT, 6.5" BOLT CIRCLE - #99 SPINDLE
$0.00
Fits #99 Spindle. Drum Size 12" x 2".
HD 8 BOLT, 6.5
HD 8 BOLT, 6.5" BOLT CIRCLE - #99 SPINDLE (DUAL WHEEL)
$0.00
Fits #99 Spindle. Oil bath Hub (Dual Wheel). Drum size 12 1/4" x 3 1/2".
HD 8 BOLT, 6.5

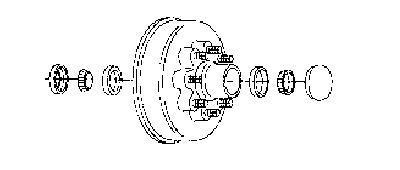

HD 8 BOLT, 6.5" BOLT CIRCLE - 3,500 LB CAPACITY
$0.00
Fits Dexter 5,200 through 7,000 lb axles. Capacity of 3,500 lbs per each. For spindles requiring 2 1/4" or 2 1/8" I.D. Seal. Available in Standard Grease, E-Z Lube, or Oil bath applications. Drum size 12" x 2".
HD 8 BOLT, 6.5
HD 8 BOLT, 6.5" BOLT CIRCLE - 3,600 LB CAPACITY
$0.00
Fits Dexter 7,200 lb axles. Hub comes with 9/16" or 5/8" studs. Available in standard grease, E-Z Lube, or oil bath applications. Drum size 12 1/4" x 2 1/2".
HD 8 BOLT, 6.5

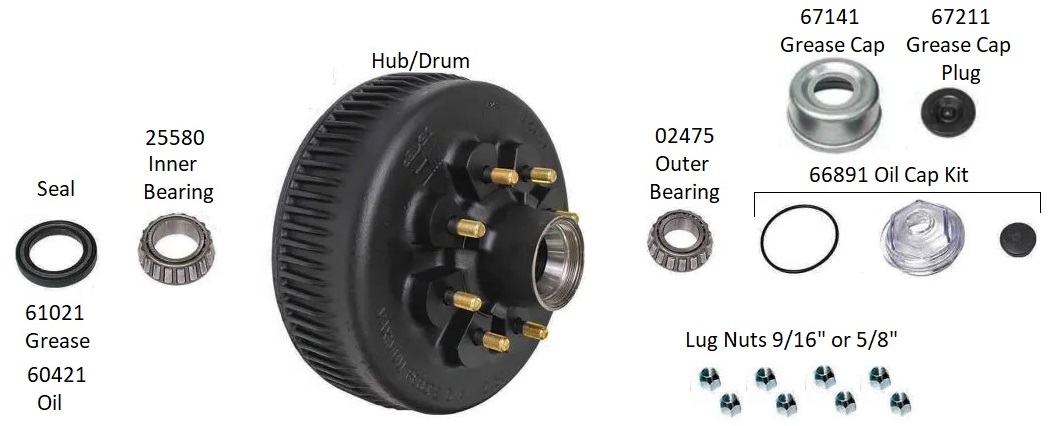

HD 8 BOLT, 6.5" BOLT CIRCLE - 4,000 LB CAPACITY - DEXTER
$0.00
Fits Dexter 8,000 lb axles. Oil bath or E-Z Lube application. Hub comes with 9/16" OR 5/8" studs. 4.56" or 4.75" Hub pilot. Drum size 12 1/4" x 3 3/8". Available with or without ABS exciter ring installed.
Complete hub and drum assembly for Dexter old style 9,000 lb axles.
HUB AND DRUM ASSEMBLY FOR DEXTER 9,000 LB AXLES PRE-1989

Parts for hub and drum assembly for Dexter 9,000 lb axles prior to 1989
25580 Inner Bearing/2585 Outer Bearing, Hub and Drum no longer available.

25580 - BEARING #25580 - 1.750" I.D. $13.9525855 - BEARING #2585 - 1.313" I.D. $18.9525520 - BEARING RACE #25520 FOR BEARING #25580 $6.9925200 - BEARING RACE #2520 FOR #2585 BEARING $9.9560421 - UNITIZED OIL SEAL - 3.376" O.D./2.25" I.D. - EQUIVALENT TO DEXTER 10-63 $40.9566891 - OIL CAP KIT - INCLUDES 21-35 CAP, 10-45 O-RING, 46-32 PLUG $22.9534265 - DRIVE IN STUD - 5/8" DIAMETER, 3 1/8" LONG $4.7933521 - WHEEL RETAINING RING FOR 9K-12K AXLES, USE WITH 34256 LUG NUTS $69.9534256 - 5/8" x 1 1/16" HEX WHEEL LUG NUT, 90 DEGREE, CONED $1.69
Add To Cart
Dexter 10K heavy duty hub and drum assembly

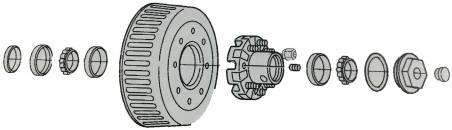

DEXTER 10,000 LB (PER PAIR) HEAVY DUTY - 12 1/4" X 4" HUB AND DRUM

Fits Dexter 10,000 lb heavy duty axles with 12 1/4" x 4" drums.
Capacity of 5,000 lbs per each. Oil bath hub.
Drum available with or without ABS exciter ring installed.

62272 - DEXTER HUB KIT #8-214-5 INCLUDES BEARINGS, SEAL, CAP, NUTS $396.958-214-5 - DEXTER 10K HUB ONLY USES 395S & 387A BEARINGS $307.7992387 - BEARING #387A - 2.250" I.D. $26.4992382 - #382A RACE, FOR BEARING #387A $11.3992395 - BEARING #395S - 2.625" I.D. $25.9592394 - #394A RACE, FOR BEARING #395S $14.3966966 - DEXTER OIL CAP KIT #21-36, INCLUDES CAP, O-RING, & PLUG $22.9567991 - DEXTER OIL CAP PLUG $2.6992711 - DEXTER 10K BRAKE DRUM ONLY, NON-ABS, 12 1/4" X 4" $455.959-27-3 - DEXTER 10K BRAKE DRUM ONLY, WITH ABS, 12 1/4" X 4" $359.0072444 - DRUM MOUNTING BOLT, 1/2"-13 x 1 3/4" $1.4934256 - 5/8" x 1 1/16" HEX WHEEL LUG NUT, 90 DEGREE, CONED $1.6934265 - DRIVE IN STUD - 5/8" DIAMETER, 3 1/8" LONG $4.7933521 - WHEEL RETAINING RING FOR 9K-12K AXLES, USE WITH 34256 LUG NUTS $69.95
Add To Cart
HD 8 BOLT, 6.5

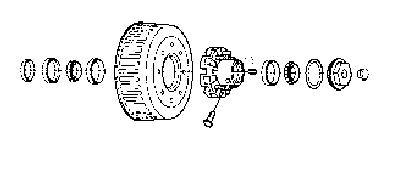

HD 8 BOLT, 6.5" BOLT CIRCLE - 6,000 LB CAPACITY
$0.00
Fits Dexter 12,000 lb axles, Hi or Lo-profile. Capacity of 6,000 lbs per each. Drum size 12 1/4" x 5". Drum available with ABS exciter ring installed.
HD 8 BOLT, 6.5

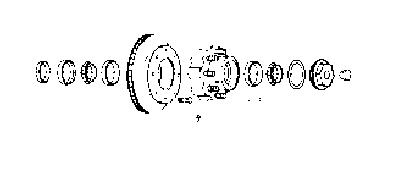

HD 8 BOLT, 6.5" BOLT CIRCLE - 6,000 LB CAPACITY - DEXTER DISC BRAKE
$0.00
Fits Dexter 12,000 Disk Brake Hi-profile axles. Capacity of 6,000 lbs per each. Oil bath hub. Fits 16" and 16.5" diameter wheels. Rotor available with ABS exciter ring installed.

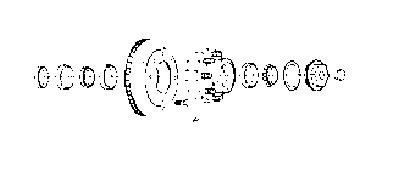

HD 8 BOLT, 6.5
HD 8 BOLT, 6.5" BOLT CIRCLE - 5,000 LB CAPACITY - DEXTER DISC BRAKE
$0.00
Fits Dexter 10,000 Disc brake axles. Capacity of 5,000 lbs per each. Oil bath hub. Rotor available with ABS exciter ring installed.
