Hanger Kits
 |
SINGLE AXLE HANGER KITS 1.75" SLIPPER SPRINGS (2,000 LB AXLES)
|
2 of each product is needed per axle. Each part number is sold individually. Except the complete single axle kit which includes 2 rear hangers, 2 front hangers, 2 shackle bolts and 2 hex locknuts.
|
|
REAR HANGER (QTY 1) |
3718 |
$5.60 |
 |
|
FRONT HANGER (QTY 1) |
3721 |
$3.48 |
|
|
9/16"-18 x3" SHACKLE BOLT (QTY 1) |
3816 |
$1.40 |
|
|
9/16"-18 HEX LOCKNUT FOR SHACKLE BOLTS (QTY 1) |
3801 |
$0.40 |
|
|
|
 |
SINGLE AXLE HANGER KITS 2" SLIPPER SPRINGS (3,500-8,000 LB AXLES)
|
2 of each product is needed per axle. Each part number is sold individually. Except the complete single axle kit which includes 2 rear hangers, 2 front hangers, 2 shackle bolts and 2 hex locknuts.
|
|
FRONT HANGER (QTY 1) |
3708 |
$6.75 |
|
|
REAR HANGER (QTY 1) |
3703 |
$9.75 |
|
|
9/16"-18 x3 1/2" SHACKLE BOLT (QTY 1) |
3813 |
$1.40 |
|
|
9/16"-18 HEX LOCKNUT FOR SHACKLE BOLTS (QTY 1) |
3801 |
$0.40 |
|
|
COMPLETE SINGLE AXLE KIT (3,500-8,000lbs) |
87655 |
$33.95 |
|
|
|
 |
TANDEM AXLE HANGER KITS 2" SLIPPER SPRINGS (3,500-8,000 LB AXLES)
|
2 of each product is needed plus 8 of item number 3813 & 3801. Each part number is sold individually. Except the complete tandem axle kit which includes 2 rear hangers, 2 front hangers, 2 center hangers, 2 equalizers, 8 shackle bolts, 8 hex locknuts and 2 center equalizer bolts. |
|
FRONT HANGER (QTY 1) |
3708 |
$6.75 |
|
|
CENTER HANGER (QTY 1) |
3701 |
$6.85 |
|
|
REAR HANGER (QTY 1) |
3703 |
$9.75 |
|
|
9/16"-18 x3 1/2" SHACKLE BOLT (QTY 1) |
3813 |
$1.40 |
|
|
12" OAL EQUALIZAR (QTY 1) |
3728 |
$29.95 |
|
|
9/16"-18 HEX LOCKNUT FOR SHACKLE BOLTS (QTY 1) |
3801 |
$0.40 |
|
|
CENTER EQUALIZER BOLT, 7/8" x 4-1/2" (QTY 1) |
3811 |
$5.74 |
|
|
COMPLETE TANDEM AXLE KIT |
87656 |
$109.95 |
|
|
|
 |
TRIPLE AXLE HANGER KITS SLIPPER SPRINGS (3,500-8,000 LB AXLES)
|
Four of each item is needed, plus 2 of item number 3708 & 3703 and 12 of item number 3813 & 3801. Each part number is sold individually. Except the complete triple axle kit which includes: 2 Front hangers, 4 center hangers, 2 rear hangers 4 equalizers, 12 shackle bolts, 12 hex locknuts and 4 center equalizer bolts. |
|
FRONT HANGER (QTY 1) |
3708 |
$6.75 |
|
|
REAR HANGER (QTY 1) |
3703 |
$9.75 |
|
|
CENTER HANGER (QTY 1) |
3701 |
$6.85 |
|
|
9/16"-18 x3 1/2" SHACKLE BOLT (QTY 1) |
3813 |
$1.40 |
|
|
9/16"-18 HEX LOCKNUT FOR SHACKLE BOLTS (QTY 1) |
3801 |
$0.40 |
|
|
12" OAL EQUALIZAR (QTY 1) |
3728 |
$29.95 |
|
|
CENTER EQUALIZER BOLT, 7/8" x 4-1/2" (QTY 1) |
3811 |
$5.74 |
|
|
COMPLETE TRIPLE AXLE KIT |
87657 |
$179.95 |
|
|
|
 |

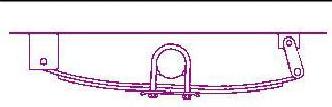

SINGLE AXLE HANGER KITS 1.75" DOUBLE EYE SPRINGS (2,000-7,000 LB AXLES)
|
2 of item number 3721 & 3727, 6 of item 3816 & 3801, and 4 of item number 3823 are needed. Each item is sold individually. Except the complete single axle kit which includes: 2 front hangers, 2 rear hangers, 6 shackle bolts, 6 hex locknuts and 4 shackle straps. |
|
FRONT HANGER (QTY 1) |
3721 |
$3.48 |
|
|
REAR HANGER (QTY 1) |
3727 |
$3.85 |
|
|
9/16"-18 x3" SHACKLE BOLT (QTY 1) |
3816 |
$1.40 |
|
|
9/16"-18 HEX LOCKNUT FOR SHACKLE BOLTS (QTY 1) |
3801 |
$0.40 |
|
|
2 1/4 x 1 1/4 SHACKLE STRAP (QTY 1) |
3823 |
$1.00 |
|
|
COMPLETE SINGLE AXLE KIT (2,000-7,000lb) |
87658 |
$24.95 |
|
|
|
 |
TANDEM AXLE HANGER KITS 1.75" DOUBLE EYE SPRINGS (2,000-7,000 LB AXLES)
|
2 of item number 3712 & 3621, 4 of item 3721, 14 of item 3816 & 3801, and 8 of item 3823 are needed. Each item is sold individually. Except for the complete tandem axle kit which includes: 2 center hangers, 4 front/rear hangers, 14 shackle bolts, 14 hex locknuts, 8 shackle straps and 2 equalizers. |
|
FRONT & REAR HANGER (QTY 1) |
3721 |
$3.48 |
|
|
CENTER HANGER (QTY 1) |
3712 |
$5.95 |
|
|
9/16"-18 x3" SHACKLE BOLT (QTY 1) |
3816 |
$1.40 |
|
|
9/16"-18 HEX LOCKNUT FOR SHACKLE BOLTS (QTY 1) |
3801 |
$0.40 |
|
|
5 3/4 A-EQUALIZER (QTY 1) |
3621 |
$10.95 |
|
|
2 1/4 x 1 1/4 SHACKLE STRAP (QTY 1) |
3823 |
$1.00 |
|
|
COMPLETE TANDEM AXLE KIT (DOUBLE EYE SPRINGS) |
87659 |
$49.95 |
|
|
|
 |
TRIPLE AXLE HANGER KITS 1.75" DOUBLE EYE SPRINGS (2,000-7,000 LB AXLES)
|
4 of item number 3712, 3621 & 3721, 24 of item 3816 & 3801, and 16 of item 3823 are needed. Each item is sold individually. Except for the complete triple axle kit which includes: 4 center hangers, 4 front/rear hangers, 24 shackle bolts, 24 hex locknuts, 16 shackle straps and 4 equalizers. |
|
FRONT & REAR HANGER (QTY 1) |
3721 |
$3.48 |
|
|
CENTER HANGER (QTY 1) |
3712 |
$5.95 |
|
|
9/16"-18 x3" SHACKLE BOLT (QTY 1) |
3816 |
$1.40 |
|
|
9/16"-18 HEX LOCKNUT FOR SHACKLE BOLTS (QTY 1) |
3801 |
$0.40 |
|
|
5 3/4 A-EQUALIZER (QTY 1) |
3621 |
$10.95 |
|
|
2 1/4 x 1 1/4 SHACKLE STRAP (QTY 1) |
3823 |
$1.00 |
|
|
|
 |
DEXTER AXLE HANGER KITS - 2" SLIPPER SPRINGS (9,000 LB AXLES)
|
For specific pricing, click on any of the underlined links.
| Kit Item No. |
HAP-105-00* |
HAP-205-01** |
HAP-205-02** |
HAP-205-03** |
| Item No. |
Description |
|
|
|
|
| Hangers |
| 28-68-4 |
Front hanger, 5" Tall, 5/8" bolthole |
2 |
|
|
|
| 30-68-1 |
Rear hanger, 6-3/8" tall, 5/16" bolthole |
2 |
|
|
|
| 29-39-4 |
Center hanger, 4-1/2" tall, 1" bolthole |
|
2 |
2 |
2 |
| Equalizers |
| 13-117-03 |
38" axle spacing |
|
2 |
|
|
| 13-118-03 |
42-1/4" axle spacing |
|
|
2 |
|
| 13-119-03 |
48-1/2" axle spacing |
|
|
|
2 |
| Bolts & Nuts |
| 7-7 |
Spring keeper bolt, 5/16" x 3-1/4" |
2 |
2 |
2 |
2 |
| 6-11 |
5/16" Hex lock nut |
2 |
2 |
2 |
2 |
| 7-181 |
Spring eye bolt, 5/8" x 4-1/2" |
2 |
2 |
2 |
2 |
| 6-38LN |
5/8" Hex lock nut |
2 |
2 |
2 |
2 |
| 7-182 |
Equalizer bolt, 1" x 5" |
|
2 |
2 |
2 |
| 6-112 |
1" Hex lock nut |
|
2 |
2 |
2 |
| * Complete single axle hanger kit. |
| ** Use HAP-105-00 in combination with HAP-205-01, HAP-205-02, or HAP-205-03 for complete tandem axle hanger kit. |
|
|
H-KIT, SGL AXLE, DEX 9K, BOXED |
HAP-105-00 |
$35.74 |
|
|
9K MULTI-AXLE CONV KIT, 38" AXLE SPACING |
HAP-205-01 |
$71.31 |
|
|
9K MULTI-AXLE CONV KIT, 42 1/4" AXLE SPACING |
HAP-205-02 |
$82.00 |
|
|
9K MULTI-AXLE CONV KIT, 48 1/2" AXLE SPACING |
HAP-205-03 |
$98.29 |
|
|
FRT HANGER FOR 2" SPLR SPG 5"TALL (HAP105) 9KDX |
28-68-4 |
$31.50 |
|
|
REAR HANGER FOR 2" SLPR SPG 6 1/4"TALL(HAP105)9K |
30-68-1 |
$38.47 |
|
|
CNTR HANGER FOR 2" SLPR SPG 4 1/2"TALL(HAP205)9K |
29-39-4 |
$50.13 |
|
|
EQUALIZER, 9K DEXTER, 38" SPACING (13 1/8"L) |
13-117-03 |
$63.83 |
|
|
EQUALIZER, 9K DEXTER, 42.25" SPACING(17 3/8"L) |
13-118-03 |
$87.51 |
|
|
EQUALIZER, 9K DEXTER, 48.5" SPACING (23 1/2"L) |
13-119-03 |
$94.40 |
|
|
5/8"-11 x 4" SPG EYE BOLT, (9K) |
7-181 |
$2.09 |
|
|
5/8"-11 HEX LOCKNUT, GR2 |
6-38 |
$0.94 |
|
|
1"-8 x 5" EQUALIZER BOLT (9K) |
7-182 |
$6.90 |
|
|
1"-8 HEX LOCKNUT FOR 9K EQ & 10-15K SPG EYE BOLT |
6-112 |
$2.32 |
|
|
|
 |
DEXTER AXLE HANGER KITS - 2.5" SLIPPER SPRINGS (10,000 LB GENERAL DUTY AXLES)
|
For specific pricing, click on any of the underlined links.
| Kit Item No: |
HAP-156-00* |
HAP-256-01** |
HAP-256-02** |
HAP-256-03** |
| Item No. |
Description |
|
|
|
|
| Hangers |
| 28-60 |
LH frt hanger, 5-1/4" tall, 3/4" bolthole |
1 |
|
|
|
| 28-59 |
RH frt hanger, 5-1/4" tall, 3/4" bolthole |
1 |
|
|
|
| 30-61-1 |
Rear hanger, 4-1/2" tall, 5/16" bolthole |
2 |
|
|
|
| 29-33 |
Center hanger, 4-1/2" tall, 1" bolthole |
|
2 |
2 |
2 |
| Equalizers |
| 13-80-1 |
LH equalizer, 38" axle spacing |
|
1 |
|
|
| 13-81-1 |
RH equalizer, 38" axle spacing |
|
1 |
|
|
| 13-82-1 |
LH equalizer, 42-1/4" axle spacing |
|
|
1 |
|
| 13-83-1 |
RH equalizer, 42-1/4" axle spacing |
|
|
1 |
|
| 13-84-1 |
LH equalizer, 48-1/2" axle spacing |
|
|
|
1 |
| 13-85-1 |
RH equalizer, 48-1/2" axle spacing |
|
|
|
1 |
| Bolts & Nuts |
| 7-135-2 |
Spring eye bolt w/zerk, 3/4" x 4-1/2" |
2 |
2 |
2 |
2 |
| 6-113 |
3/4" Hex lock nut |
2 |
2 |
2 |
2 |
| 7-136-2 |
Equalizer bolt w/zerk, 1" x 5-1/4" |
|
2 |
2 |
2 |
| 6-112 |
1" hex lock nut |
|
2 |
2 |
2 |
| * Complete single axle hanger kit. |
| ** Use HAP-105-00 in combination with HAP-205-01, HAP-205-02, or HAP-205-03 for complete tandem axle hanger kit. |
|
|
H-KIT, SGL AXLE, DX 10GD BOXED |
HAP-158-00 |
$89.71 |
|
|
10GD MULTI-AXLE CONV KIT 38" AXLE SPACING |
HAP-256-01 |
$120.47 |
|
|
10GD MULTI-AXLE CONV KIT 42.25" AXLE SPACING |
HAP-258-02 |
$143.53 |
|
|
10GD MULTI-AXLE CONV KIT 48.5" AXLE SPACING |
HAP-256-03 |
$142.32 |
|
|
FT HGR,LH, FOR 2.5" SLPR 5 1/4"TALL (HAP156) 10GD |
28-60 |
$28.06 |
|
|
FT HGR,RH, FOR 2.5" SLPR 5 1/4"TALL (HAP156) 10GD |
28-59 |
$28.06 |
|
|
REAR HANGER FOR 2.5"SLPR 4 1/2"TALL (HAP256) 10GD |
30-61-1 |
$49.03 |
|
|
CNTR HANGER FOR 2.5"SLPR 4 1/2"TALL (HAP258) 10GD |
29-33 |
$40.87 |
|
|
EQUALIZER, LH or RH 10K GD 38" SPACING (14 1/4"L) |
13-139-3 |
$51.76 |
|
|
EQUALIZER, LH or RH 10K GD, 42.25"SPACING (18 3/8"L) |
13-140-3 |
$80.89 |
|
|
EQUALIZER, LH or RH 10K GD, 48.5"SPACING (24 5/8"L) |
13-141-3 |
$88.49 |
|
|
3/4"-10 x 4 1/2"WET BOLT FOR 10GD SPG EYE |
7-135-2 |
$7.76 |
|
|
3/4"-10 HEX LOCKNUT,10GD SPG BOLT & 12-15K U-BOLT |
6-113 |
$1.36 |
|
|
1"-8 x 5 1/4" WET BOLT, EQUALIZER (10GD) |
7-136-2 |
$8.04 |
|
|
1"-8 HEX LOCKNUT FOR 9K EQ & 10-15K SPG EYE BOLT |
6-112 |
$2.32 |
|
|
|
|
DEXTER AXLE HANGER KITS - 3" SLIPPER SPRINGS (10,000 LB THRU 15,000 LB HEAVY DUTY AXLES)
|
For specific pricing, click on any of the underlined links.
| Kit Item No: |
HAP-103-00* |
HAP-203-01** |
HAP-203-02** |
HAP-203-03** |
| Item No. |
Description |
|
|
|
|
| Hangers |
| 28-67-4 |
LH frt hanger, 6-1/4" tall, 1" bolthole |
2 |
|
|
|
| 30-66-1 |
Rear hanger, 7-11/16" tall, 1/2" bolthole |
2 |
|
|
|
| 29-37-4 |
Center hanger, 6-1/2" tall, 1-1/8" bolthole |
|
2 |
2 |
2 |
| Equalizers |
| 13-107-7LH |
LH, 38" axle spacing |
|
1 |
|
|
| 13-107-8RH |
RH, 38" axle spacing |
|
1 |
|
|
| 13-108-3LH |
LH, 42-1/4" axle spacing |
|
|
1 |
|
| 13-108-4RH |
RH, 42-1/4" axle spacing |
|
|
1 |
|
| 13-109-3LH |
LH, 48-1/2" axle spacing |
|
|
|
1 |
| 13-109-4RH |
RH, 48-1/2" axle spacing |
|
|
|
1 |
| Bolts & Nuts |
| 7-95 |
Spring keeper bolt, 1/2" x 4-1/2" |
2 |
2 |
2 |
2 |
| 6-46 |
1/2" Hex lock nut |
2 |
2 |
2 |
2 |
| 7-169 |
Spring eye bolt, 1" x 5-1/2" |
2 |
2 |
2 |
2 |
| 6-112 |
1" hex lock nut |
2 |
2 |
2 |
2 |
| 7-170 |
Equalizer bolt, 1-1/8" x 6" |
|
2 |
2 |
2 |
| 6-72 |
1-1/8" hex lock nut |
|
2 |
2 |
2 |
| * Complete single axle hanger kit. |
| ** Use HAP-156-00 in combination with HAP-256-01, HAP-256-02, or HAP-256-03 for complete tandem axle hanger kit. |
|
|
10-15K H-KIT, SGL AXLE |
HAP-103-00 |
$86.94 |
|
|
10-15K MULTIAXL CONV KIT 38" AXLE SPACING |
HAP-203-01 |
$128.97 |
|
|
10-15K MULTIAXL CONV KIT 42.25" AXLE SPACING |
HAP-203-02 |
$152.25 |
|
|
10-15K MULTIAXL CONV KIT 48.5" AXLE SPACING |
HAP-203-03 |
$166.99 |
|
|
FRT HGR FOR 3" SLPR SPG 6 1/4"TALL(HAP103)10-15K |
28-67-4 |
$58.83 |
|
|
REAR HGR FOR 3" SLPR SPG 7 11/16"TL(HAP103)10-15K |
30-66-1 |
$61.24 |
|
|
CNTR HGR FOR 3" SLPR SPG 4 1/2"TALL(HAP203)10-15K |
29-37-4 |
$70.43 |
|
|
1/2"-20 x 4 1/2" BOLT, EQ/SPG RETAINER (10-15K) |
7-95 |
$1.41 |
|
|
1/2"-20 HEX FLG LOCKNUT (8K-9K BRK) |
6-46 |
$0.54 |
|
|
1"-8 x5 1/2"SPG EYE BOLT FOR RUBBER BSHD 10K-15K |
7-169 |
$6.94 |
|
|
1"-8 HEX LOCKNUT FOR 9K EQ & 10-15K SPG EYE BOLT |
6-112 |
$2.32 |
|
|
1 1/8"-7 x 6" EQ BOLT (10-15K) |
7-170 |
$11.07 |
|
|
1 1/8"-7 HEX LOCKNUT FOR EQ BOLT (10-15K) |
6-72 |
$3.76 |
|
|
|
|
