U-bolts, U-bolt nuts, Tie Plates

We have suspension bolts for nearly all trailer suspensions to help you with new installations and repairs/replacements.
SPRING CENTER TIE BOLTS
SPRING CENTER TIE BOLTS
$0.00
We carry the most popular replacement center tie bolts used in the industry.

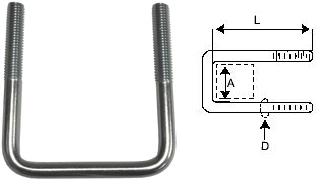

U-BOLTS  - SQUARE END
U-BOLTS - SQUARE END
$0.00

For 1 1/2" to 3" square tubing
For specific pricing, click on any of the underlined links.

U-Bolts - Square End (Replacement Bolts)
Item No "A" Size "D" Diameter "L" Length
1 1/2" 1/2" - 20 5"
1 3/4" 9/16" - 18 5"
2" 9/16" - 18 5 3/4"

1 3/4"

3/8" - 16 4"
2 1/4" 3/8" - 16 4 1/4"
2 3/8" 3/8" - 16 5 1/4"
3 3/8" 3/8" - 16 4 1/4"
2 1/8" 7/16" - 14 4"
3 1/8" 7/16" - 14 3"
3 1/8" 7/16" - 14 4"
4 1/8" 7/16" - 14

3"

2 1/8" 1/2" - 13 5 1/4"
2 1/8" 1/2" - 13 6 1/2"
3 1/8" 1/2" - 13 5 1/4"
3 1/8" 1/2" - 13 6 1/2"
Locknut, 3/8" - 16 with nylon insert
Washer, 3/8" flat
Locknut, 7/16" - 14 with nylon insert
Washer, 7/16" flat
Locknut, 1/2" - 13 with nylon insert
Washer, 1/2" flat
U-bolt nut, 1/2" - 20
U-bolt nut, 9/16" - 18

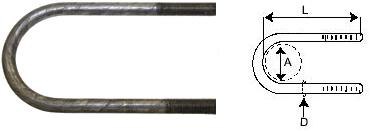

U-BOLTS - ROUND END
U-BOLTS - ROUND END
$0.00

Replacement for 2,000 lb - 15,000 lb axles.
For specific pricing, click on any of the underlined links.

U-Bolts - Round End (Replacement Bolts)
Item No Description "A" Size "D" Diameter "L" Length
With nuts for 2,000 lb. axles (Plain Finish) 1 3/4" 3/8"-24 4 1/4"
With nuts for 2,000 lb. axles (Zinc Finish) 1 3/4" 3/8"-24 4 1/4"
With nuts for 7,500 lb. solid bar axles (Plain Finish) 2 1/2" 9/16"-18 7 3/4"
With nuts for 3,500 lb. axles (Plain Finish) 2 3/8" 1/2"-20 5 1/2"
With nuts for 3,500 lb. axles (Zinc Finish) 2 3/8" 1/2"-20 5 1/2"
With nuts for 5,200 lb, 6,000 lb, and 7,000 lb. axles (Plain Finish) 3" 1/2"-20 7"
With nuts for 5,200 lb, 6,000 lb, and 7,000 lb. axles (Zinc Finish)  3" 1/2"-20 7"
With nuts for 5,200 lb, 6,000 lb, and 7,000 lb. axles (Plain Finish) 3" 9/16"-18 7 1/4"
With nuts for 8,000 lb. axles (Plain Finish) 3 1/2" 9/16"-18 8"
With nuts for 8,000 lb. axles with 10 leaf spring (Plain Finish) 3 1/2" 9/16"-18 9"
With locknuts for 9,000 lb. axles (Plain Finish) 4" 5/8"-11 8 1/8"
With locknuts for 10,000 lb.axles (Plain Finish) 5" 5/8"-11 8 7/8"
With nuts for Hayes 10,000 lb. axles (Plain Finish) 5" 5/8"-11 9 1/2"
With locknuts for Hayes 10,000 lb. and 15,000 lb.axles (Plain Finish) 5" 3/4"-10 9 5/8"
