Suspension Repair Parts & Springs
 |
DOUBLE EYE SPRINGS
|
When replacing worn or broken springs, be sure to measure old springs as noted in the diagram. Your worn spring will be longer than a new spring due to wear.
For specific pricing, click on any of the underlined links.
| Item No |
No. Leaves |
Capacity |
A |
B |
C |
Width |
Eye Diameter |
| 1020 |
3 |
1000 lbs. |
20 1/4" |
3 3/16" |
10 3/16" |
1 3/4" |
9/16" |
| 1724 |
3 |
1750 lbs. |
23 1/4" |
3 1/2" |
11 1/2" |
1 3/4" |
9/16" |
| PR722 |
3 |
1250 lbs. |
25 1/4" |
3" |
12 5/8" |
1 3/4" |
9/16" |
| PR3 |
3 |
1750 lbs. |
25 1/4" |
3" |
12 5/8" |
1 3/4" |
9/16" |
| PR4B |
4 |
1750 lbs. |
25 1/4" |
3" |
12 5/8" |
1 3/4" |
9/16" |
| PR4 |
4 |
2400 lbs. |
25 1/4" |
3" |
12 5/8" |
1 3/4" |
9/16" |
| PR5 |
5 |
2900 lbs. |
25 1/4" |
3" |
12 5/8" |
1 3/4" |
9/16" |
| PR6 |
6 |
3300 lbs. |
24 7/8" |
3" |
12 5/8" |
1 3/4" |
9/16" |
| TE30 |
1 |
3000 lbs. |
25 1/4" |
3" |
12 5/8" |
1 3/4" |
9/16" |
| PR427 |
4 |
1800 lbs. |
27" |
2 3/4" |
13 1/2" |
1 3/4" |
9/16" |
| PR626 |
6 |
2250 lbs. |
26" |
3 3/4" |
13" |
1 3/4" |
9/16" |
|
|
1000LB 3LF 20 3/8" DBL EYE SPRING |
1020 |
$34.79 |
 |
|
1750LB 3LF 23 1/4" DBL EYE SPRING |
1724 |
$44.94 |
|
|
1250LB 3LF 25 1/4" DBL EYE SPRING |
PR722 |
$41.21 |
|
|
1750LB 3LF 25 1/4" DBL EYE SPRING |
PR3 |
$33.77 |
|
|
1750LB 4LF 25 1/4" DBL EYE SPRING |
PR4B |
$28.30 |
|
|
2400LB 4LF 25 1/4" DBL EYE SPRING |
PR4 |
$45.04 |
|
|
2900LB 5LF 25 1/4" DBL EYE SPRING |
PR5 |
$50.93 |
|
|
3300LB 6LF 25 1/4" DBL EYE SPRING |
PR6 |
$59.34 |
|
|
3000LB SGL LEAF 25 1/4" MH DBL EYE SPRING |
TE30 |
$33.66 |
|
|
1800LB 4LF 27" DBL EYE SPRING |
PR427 |
$49.65 |
|
|
2250LB 6LF 26" DBL EYE SPRING |
PR626 |
$65.34 |
|
|
|
 |
SLIPPER SPRINGS
|
Slipper Springs should be measured at points A, B, C & D, to best determine the proper spring for replacement.
For specific pricing, click on any of the underlined links.
| Item No |
No. Leaves |
Capacity |
A |
B |
C |
D |
Width |
Eye Diameter |
| WIC2 |
2 |
500 lbs. |
24 1/4" |
23 1/8" |
4" |
11" |
1 3/4" |
9/16" |
| WIE3 |
3 |
750 lbs. |
24 1/4" |
23 1/8" |
4" |
11" |
1 3/4" |
9/16" |
| WIH4 |
4 |
1000 lbs. |
24 1/4" |
23 1/8" |
4" |
11" |
1 3/4" |
9/16" |
| WID2 |
2 |
1000 lbs. |
30 1/4" |
27 3/8" |
4 1/2" |
13 1/2" |
1 3/4" |
9/16" |
| WIF3 |
3 |
1500 lbs. |
30 1/4" |
27 3/8" |
4 1/2" |
13 1/2" |
1 3/4" |
9/16" |
| WIG4 |
4 |
1750 lbs. |
30 1/4" |
27 3/8" |
4 1/2" |
13 1/2" |
1 3/4" |
9/16" |
| 803T3 |
4 |
2000 lbs. |
26 1/8" |
24 7/8" |
3" |
11 3/16" |
2" |
9/16" |
| 1003T3 |
4 |
2500 lbs. |
26 1/4" |
24 7/8" |
3" |
11 3/16" |
2" |
9/16" |
| E5226 |
5 |
3000 lbs. |
26 5/8" |
25 1/4" |
3 1/2" |
12" |
2" |
9/16" |
| 1203T3 |
5 |
3500 lbs. |
26 1/8" |
24 7/8" |
3" |
11 3/16" |
2" |
9/16" |
| 1403T3 |
7 |
4000 lbs. |
26 1/8" |
24 7/8" |
3" |
11 3/16" |
2" |
9/16" |
| E5115 |
6 |
4000 lbs. |
29 1/2" |
27 1/2" |
3 1/2" |
13 1/2" |
2" |
9/16" |
| 72-10-2 |
6 |
4500 lbs. |
30" |
26 7/8" |
3 7/8" |
13 1/8" |
2" |
5/8" |
| E8536 |
8 |
5000 lbs. |
29 1/2" |
27 1/2" |
3 1/2" |
13 1/2" |
2" |
9/16" |
| 093161 |
5 |
5000 lbs. |
32 1/2" |
29" |
4" |
14" |
2 1/2" |
3/4" |
| 72-21 |
5 |
5000 lbs. |
30" |
26 7/8" |
4" |
13 1/2" |
2 1/2" |
3/4" |
| 72-43-1 |
5 |
5000 lbs. |
30" |
26 3/4" |
4" |
13 3/8" |
3" |
1" |
| 72-44-1 |
6 |
6000 lbs. |
30" |
26 3/4" |
4" |
13 3/8" |
3" |
1" |
| 72-45-1 |
7 |
7500 lbs. |
30" |
26 3/4" |
4" |
13 3/8" |
3" |
1" |
| 72-48 |
3 |
11200 lbs. |
43 3/4" |
42" |
6 1/4" |
N/A" |
3" |
N/A" |
|
|
500LB 2LF 23 1/8" SLPR SPRG, 9/16"ID EYE, 1.75W |
WIC2 |
$24.36 |
|
|
750LB 3LF 23 1/8" SLPR SPRG, 9/16"ID EYE, 1.75W |
WIE3 |
$24.98 |
|
|
1000LB 4LF 23 1/8" SLPR SPRG, 9/16"ID EYE, 1.75W |
WIH4 |
$28.01 |
|
|
1000LB 2LF 27 3/8" SLPR SPRG, 9/16"ID EYE, 1.75W |
WID2 |
$28.09 |
|
|
1500LB 3LF 27 3/8" SLPR SPRG, 9/16"ID EYE, 1.75W |
WIF3 |
$35.79 |
|
|
1750LB 4LF 27 3/8" SLPR SPRG, 9/16"ID EYE, 1.75W |
WIG4 |
$31.87 |
|
|
2000LB 4LF 24 7/8" SLPR SPRING, 2" WIDE |
803T3 |
$55.68 |
|
|
2500LB 4LF 24 7/8" SLPR SPRING, 2" WIDE |
1003T3 |
$56.08 |
|
|
3000LB 5LF 25 1/4" SLPR SPRING, 2" WIDE |
E5226 |
$56.08 |
|
|
3500LB 5LF 24 7/8" SLPR SPRING, 2" WIDE |
1203T3 |
$50.35 |
|
|
4000LB 7LF 24 7/8" SLPR SPRING, 2" WIDE |
1403T3 |
$65.83 |
|
|
4000LB 6LF 27 1/2" SLPR SPRING, 2" WIDE |
E5115 |
$71.51 |
|
|
4500LB 6LF 30" SLPR SPG W/RBR BUSH, 2"WIDE (9K) |
72-10-2 |
$101.10 |
|
|
5000LB 8LF 27.5" SLIPPER SPRING, 2" WIDE |
E8536 |
$66.45 |
|
|
5000LB 5LF 30" SLPR SPG 2.5"WIDE, MTL BUSH(10GD) |
72-21 |
$113.04 |
|
|
5000LB 5LF 32.5"SLPR SPG 2.5"WIDE,RBR BUSH,HAYES |
093161 |
$135.95 |
|
|
6000LB 6LF 30" SLPR SPG 3"WIDE, RBR BUSH, (12K) |
72-44-1 |
$113.75 |
|
|
7500LB 7LF 30" SLPR SPG 3"WIDE, RBR BUSH, (15K) |
72-45-1 |
$150.26 |
|
|
11,200LB 3LF 42" HIGH ARCH SPG, HUTCH #354-00 |
72-48 |
$105.78 |
|
|
|
 |

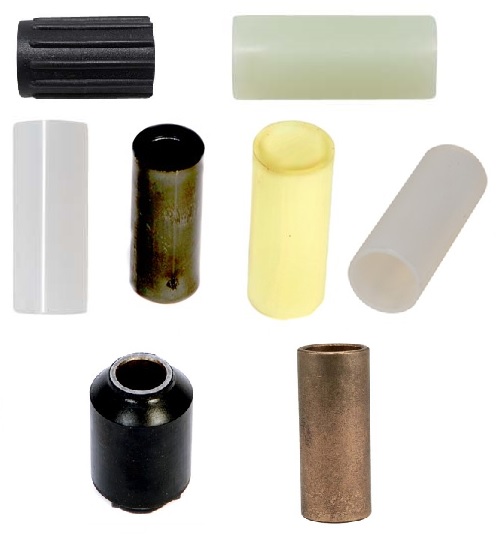

SUSPENSION BUSHINGS
|
The table below contains the Replacement Bushings used in equalizers and springs of various types and styles.
For specific pricing, click on any of the underlined links.
| Item No |
Inside Diameter |
Outside Diameter |
Length |
Description |
| ENP322 |
1/2" |
7/8" |
1 3/4" |
Nylon, Spring Eye |
| ENP605 |
9/16" |
7/8" |
1 3/4" |
Nylon, Spring Eye |
| 155228 |
1/2" |
11/16" |
1 3/4" |
Nylon, Spring Eye, "WI" Series |
| 722106 |
9/16" |
11/16" |
1 3/4" |
Nylon, Spring Eye/Equalizer |
| 722107 |
9/16" |
11/16" |
2" |
Nylon, Spring Eye |
| 722108 |
9/16" |
3/4" |
1 3/4" |
Nylon, Equalizer |
| 722109 |
3/4" |
7/8" |
1 3/4" |
Nylon, Equalizer |
| 722109A |
3/4" |
,91" |
1 3/4" |
Nylon, Equalizer |
| 721590 |
7/8" |
1 1/16" |
2 15/16" |
Nylon, Equalizer |
| 091414 |
1" |
2 1/8" |
4" |
Rubber/Steel Sleeved, Equalizer, Hayes 10K |
| 14-54 |
9/16" |
1 5/16" |
2" |
Nylon, Spring Eye (2-piece) |
| 14-73 |
5/8" |
1 3/8" |
2 3/16" |
Rubber/Steel Sleeved, Spring Eye, DX 9K |
| 14-67 |
3/4" |
1" |
2 1/2" |
Bronze, Springe Eye, DX 10K GD |
| 14-69 |
1" |
2" |
3" |
Rubber/Steel Sleeved, Springe Eye, DX 10K-15K |
| 14-51 |
1" |
1 1/4" |
3" |
Bronze, Spring Eye, Old Style DX 10K-15K |
| 091413 |
3/4" |
1 3/4" |
2 3/4" |
Rubber/Steel Sleeved, Spring Eye, Hayes 10K |
|
|
NYLON BUSHING 7/8"OD 1/2"ID, 1.75" LONG |
ENP322 |
$2.92 |
|
|
NYLON BUSHING 7/8"OD 9/16"ID 1.75" LONG |
ENP605 |
$3.24 |
|
|
NYLON BUSHING 1/2"ID 11/16"OD 1.75" LONG |
155228 |
$1.10 |
|
|
NYLON BUSHING 9/16"ID 11/16"OD 1.75"LONG |
722106 |
$1.00 |
|
|
NYLON BUSHING 9/16"ID 11/16"OD 2"LONG |
722107 |
$1.22 |
|
|
NYLON BUSHING 9/16"ID 3/4"OD 1.75"LONG |
722108 |
$1.27 |
|
|
EQUALIZER BUSHING .75"ID .875"OD 1.75" LONG |
722109 |
$1.74 |
|
|
EQUALIZER BUSHING .75"ID .91" OD, 1.75" LONG |
722109A |
$1.65 |
|
|
EQUALIZER BUSHING 7/8"ID 1 1/16"OD 2 15/16" LONG |
721590 |
$2.58 |
|
|
EQLZR BSHG-HAYES 10K RBR 1.02ID 2.12OD 4.08 LONG |
091414 |
$15.80 |
|
|
SPG EYE BSHG(2PC PER EA) 1.31"OD 9/16"ID 2"LONG |
14-54 |
$3.59 |
|
|
SPG EYE BSHG RBR FOR 9K .646"ID 1.375"OD 2.18"L |
14-73 |
$15.72 |
|
|
SPG EYE BSHG,BRONZE 10GD 3/4"ID 1"OD 2 1/2"LONG |
14-67 |
$6.60 |
|
|
SPG EYE BSHG RBR 10-15K 1"ID 2.06"OD 3.12"LONG |
14-69 |
$10.25 |
|
|
SPG EYE BUSH BRNZ 10-15K 1"ID 1.25"OD 3"LONG |
14-51 |
$18.25 |
|
|
SPG EYE BSHG HAYES 10K RUBR .78ID 1.8OD 2.75LG |
091413 |
$16.30 |
|
|
|
 |
U-BOLTS - ROUND END
|
Replacement for 2,000 lb - 15,000 lb axles.
For specific pricing, click on any of the underlined links.
| Item No |
"A" Size |
Description |
"D" Diameter |
"L" Length |
| 175643 |
1 3/4" |
With nuts for 2K axles |
3/8" |
4 1/4" |
| 175668 |
2 1/2" |
With nuts for 7.5K solid bar axles |
9/16" |
7 3/4" |
| 176400 |
2 3/8" |
With nuts for 3.5K axles |
1/2" |
5 1/2" |
| 1755892 |
3" |
With nuts for 5.2K, 6K, and 7K axles |
1/2" |
7" |
| 176500 |
3" |
With nuts for 5.2K, 6K, and 7K axles |
9/16" |
7 1/4" |
| 11-65 |
3 1/2" |
With nuts for 8K axles |
9/16" |
8" |
| 175666 |
3 1/2" |
With nuts for 8K axles with 10 leaf spring |
9/16" |
9" |
| 11-64 |
4" |
With locknuts for 9K axles |
5/8" |
8 1/8" |
| 11-77 |
5" |
With locknuts for 10K axles |
5/8" |
8 7/8" |
| 091148 |
5" |
With nuts for Hayes 10K axles |
5/8" |
9 1/2" |
| 11-70 |
5" |
With locknuts for Hayes 10K and 15 K axles |
3/4" |
9 5/8" |
|
|
U-BOLT W/HDWE, 1 3/4" RD 3/8" DIA 4 1/4" LONG |
175643 |
$3.79 |
|
|
U-BOLT W/HDWE, 2 1/2" RD 9/16" DIA 7 3/4" LONG |
175668 |
$10.38 |
|
|
U-BOLT W/HDWE, 2 3/8" RD 1/2" DIA 5 1/2" LONG |
176400 |
$5.85 |
|
|
U-BOLT W/HDWE, 3" RD 1/2" DIA 7" LONG |
1755892 |
$8.30 |
|
|
U-BOLT W/HDWE, 3" RD 9/16" DIA 7 1/4" LONG |
176500 |
$6.96 |
|
|
U-BOLT W/HDWE, 3 1/2" RD 9/16" DIA 8" LONG (8K) |
11-65 |
$10.23 |
|
|
U-BOLT W/HDWE, 3 1/2" RD 9/16" DIA 9" LONG |
175666 |
$6.72 |
|
|
U-BOLT W/HDWE, 4"RD (9K) 5/8" DIA 8 1/8" LONG |
11-64 |
$11.47 |
|
|
U-BOLT W/HDWE, 5"RD(10K) 5/8" DIA 8 7/8" LONG |
11-77 |
$13.34 |
|
|
U-BOLT W/HDWE, 5"RD 5/8" DIA 9 1/2"LONG HAYES 10K |
091148 |
$17.99 |
|
|
U-BOLT W/HDWE, 5"RD 3/4" DIA 9 5/8" LONG (12&15K) |
11-70 |
$14.55 |
|
|
|
 |
U-BOLTS - SQUARE END
|
For 1 1/2" to 2" square tubing
For specific pricing, click on any of the underlined links.
| Item No |
"A" Size |
"D" Diameter |
"L" Length |
| 1753223 |
1 1/2" |
1/2" |
5" |
| 175130 |
1 3/4" |
9/16" |
5" |
| 175211 |
2" |
9/16" |
5 3/4" |
|
|
U-BOLT W/HDWE, 1 1/2" SQ 1/2" DIA 5" LONG |
1753223 |
$6.01 |
|
|
U-BOLT W/HDWE, 1 3/4" SQ 9/16" DIA 5" LONG |
175130 |
$5.35 |
|
|
U-BOLT W/HDWE, 2" SQ 9/16" DIA 5 3/4" LONG |
175211 |
$6.55 |
|
|
|
 |
U-BOLT AXLE PLATES
|
Replacements for all axles with 1 3/4" to 5" diameter tube.
For specific pricing, click on any of the underlined links.
| Item No |
Axle Size |
Spring Width |
U-Bolt Size |
Axle Type |
| 117535 |
1 3/4" RD |
1 3/4" |
3/8" |
2K Straight |
| 117595 |
2 3/8" RD |
1 3/4" |
1/2" |
3.5K, 2K Drop |
| 12-4 |
2 3/8" RD |
2" |
1/2" |
3.5K, 2K Drop |
| 117858 |
2 1/2" RD |
2" |
9/16" |
7.5K Solid Bar |
| 117521 |
3" RD |
1 3/4" or 2" |
1/2" or 9/16" |
6K-7K, 3.5K HD |
| 117581 |
3 1/2" RD |
1 3/4" or 2" |
9/16" |
DX 8K |
| 12-42 |
4" RD |
2" |
5/8" |
DX 9K |
| 12-49 |
5" RD |
2 1/2" |
5/8" |
DX 10K GD & Hayes 10K |
| 12-53 |
5" RD |
3" |
5/8" |
DX 10K HD |
| 12-46 |
5" RD |
3" |
3/4" |
DX 12K-15K |
| 115983 |
1 1/2" SQ |
1 3/4" |
1/2" |
Square Bar |
| 116308 |
1 3/4" SQ |
1 3/4" |
9/16" |
Square Bar |
| 117594 |
2" SQ |
1 3/4" or 2" |
9/16" |
Square Bar |
|
|
U-BOLT PLATE, 1 3/4" RD AXLE, 1 3/4" WIDE SPG |
117535 |
$4.90 |
|
|
U-BOLT PLATE, 2 3/8" RD AXLE, 1 3/4" WIDE SPG |
117595 |
$3.94 |
|
|
U-BOLT PLATE, 2 3/8" RD AXLE 2" WIDE SPG |
12-4 |
$10.97 |
|
|
U-BOLT PLATE, 2 1/2" RD AXLE, 2" WIDE SPG |
117858 |
$9.00 |
|
|
U-BOLT PLATE, 3" RD AXLE 1 3/4" OR 2" WIDE SPG |
117521 |
$5.53 |
|
|
U-BOLT PLATE,3.5"RD AXLE 1 3/4" OR 2" WIDE SPG |
117581 |
$9.64 |
|
|
U-BOLT PLATE, 4" RD AXLE 2" WIDE SPG FOR 9K |
12-42 |
$16.51 |
|
|
U-BOLT PLATE, 5" RD 2 1/2" WIDE SPG, 10KGD |
12-49 |
$16.96 |
|
|
U-BOLT PLATE,5"RD 10K HD 3" SPG, USE 5/8" U-BOLTS |
12-53 |
$18.40 |
|
|
U-BOLT PLATE, 5" RD 3" SPG (12K&15K) |
12-46 |
$18.12 |
|
|
U-BOLT PLATE, 1 3/4" SQ AXLE, 1 3/4" SPG |
116308 |
$5.42 |
|
|
U-BOLT PLATE, 2" SQ AXLE 1 3/4" OR 2" SPG |
117594 |
$6.37 |
|
|
|
 |
SHACKLE STRAPS
|
Shackle Straps are a popular replacement item for double eye suspensions. Available in 3 lengths. (9/16" hole)
Shackle Straps are a popular replacement item for double eye suspensions. Available in 3 lengths. (9/16" hole)
For specific pricing, click on any of the underlined links.
| Item No |
Width |
Size |
| 18-11 |
1 1/4" |
2 1/4" Center of hole to center of hole |
| 115052 |
1 1/4" |
2 5/8" Center of hole to center of hole |
| 115208 |
1 1/4" |
3 1/8" Center of hole to center of hole |
|
|
SHACKLE STRAP 2 1/4"LONG 1.25" WIDE, 9/16" HOLES |
18-11 |
$0.87 |
|
|
|
 |
HANGERS FOR DOUBLE EYE SPRINGS
|
Used on 1 3/4" wide springs with 9/16" spring eye I.D.
For specific pricing, click on any of the underlined links.
| Item No |
Description |
Top to Center of Hole |
Bolt Size |
| 93003-3X |
Rear hanger, no bushing, single axle only |
1 1/2" |
9/16" |
| 30-20 |
Rear hanger, single axle only |
.91" |
9/16" |
| 115917 |
Front or rear hanger |
1 1/2" |
9/16" |
| 115918 |
Center hanger |
2 1/2" |
9/16" |
| 28-5 |
Front, center, or rear hanger |
3 1/4" |
9/16" |
| 29-31 |
Hanger |
3 5/8" |
9/16" |
| E4139 |
Hanger |
4 1/4" |
9/16" |
| 115919 |
Center hanger |
5 7/16" |
3/4" |
|
|
9/16"-18 HEX LOCKNUT FOR SHACKLE BOLTS (QTY 1) |
3801 |
$0.40 |
|
|
HANGER FOR DBL EYE SPG 3 5/8" TALL |
29-31 |
$6.16 |
|
|
HANGER FOR DBL EYE SPG 4 1/4" TALL |
E4139 |
$6.42 |
|
|
|
 |
HANGERS FOR 2" SLIPPER SPRINGS
|
Front, Center and Rear Hangers for all applications of 2" wide slipper springs on 3,500 - 9,000 lb. axles.
For specific pricing, click on any of the underlined links.
| Item No |
Description |
Top to Center of Hole |
Bolt Size |
| 28-1 |
Front hanger of H202 |
4 1/4" |
9/16" |
| 29-1 |
Center hanger of H202 |
3 1/2" |
7/8" |
| 30-28 |
Rear hanger of H202 |
5 1/4" |
5/16" |
| 721584 |
Front hanger of APT6SE |
3 3/4" |
9/16" |
| 721586 |
Center hanger for APT6SE |
3 3/8" |
7/8" |
| 721585 |
Rear hanger for APT6SE |
5 1/16" |
9/16" |
| 28-68-4 |
Front hanger of HAP-105 |
5" |
5/8" |
| 28-9-1 |
Front hanger |
5" |
9/16" |
| 29-5-1 |
Center hanger |
4 1/2" |
7/8" |
| 30-68-1 |
Rear hanger for HAP-105 |
6 1/4" |
5/16" |
| 30-6-1 |
Rear hanger |
6 3/8" |
5/16" |
| 29-39-4 |
Center hanger for HAP-205 |
4 1/2" |
1" |
|
|
FRT HANGER FOR 2" SPLR SPG 5"TALL (HAP105) 9KDX |
28-68-4 |
$31.50 |
|
|
REAR HANGER FOR 2" SLPR SPG 6 1/4"TALL(HAP105)9K |
30-68-1 |
$38.47 |
|
|
CNTR HANGER FOR 2" SLPR SPG 4 1/2"TALL(HAP205)9K |
29-39-4 |
$50.13 |
|
|
|
 |
HANGERS FOR 2 1/2" SLIPPER SPRINGS
|
Front, Center and Rear Hanger Replacements of Dexter 10,000 lb. General Duty and Hayes 9K, 10K, 12K axles.
For specific pricing, click on any of the underlined links.
| Item No |
Description |
Top to Center of Hole |
Bolt Size |
| 28-60 |
Left front hanger for H258 |
5 1/4" |
3/4" |
| 28-59 |
Right front hanger for H258 |
5 1/4" |
3/4" |
| 29-33 |
Center hanger for H258 |
5 3/8" |
3/4" |
| 30-61-1 |
Rear hanger for H258 |
4 1/2" |
NA |
| 092829 |
Front hanger for Hayes |
5 1/4" |
3/4" |
| 092920 |
Center hanger for Hayes |
1 7/8" |
1" |
| 093026 |
Rear hanger for Hayes |
6" |
NA |
|
|
FT HGR,LH, FOR 2.5" SLPR 5 1/4"TALL (HAP156) 10GD |
28-60 |
$28.06 |
|
|
FT HGR,RH, FOR 2.5" SLPR 5 1/4"TALL (HAP156) 10GD |
28-59 |
$28.06 |
|
|
CNTR HANGER FOR 2.5"SLPR 4 1/2"TALL (HAP258) 10GD |
29-33 |
$40.87 |
|
|
REAR HANGER FOR 2.5"SLPR 4 1/2"TALL (HAP256) 10GD |
30-61-1 |
$49.03 |
|
|
FRT HANGER FOR 2.5" SLPR SPG 5 3/8" TALL (HAYES) |
092829 |
$35.29 |
|
|
CNTR HANGER FOR 2.5"SLPR SPG 1 7/8" TALL (HAYES) |
092920 |
$34.83 |
|
|
REAR HANGER FOR 2.5"SLPR SPG 6" TALL (HAYES) |
093026 |
$34.87 |
|
|
|
 |
HANGERS FOR 3" SLIPPER SPRINGS
|
Used on Dexter 10,000 - 15,000 lb. axles.
For specific pricing, click on any of the underlined links.
| Item No |
Description |
Top to Center of Hole |
Bolt Size |
| 28-67-4 |
Front hanger for HAP-103 |
6 1/4" |
1" |
| 20-37-4 |
Center hanger for HAP-203 |
4 1/2" |
1 1/8" |
| 30-66-1 |
Rear hanger for HAP-103 |
7 11/16" |
1/2" |
|
|
FRT HGR FOR 3" SLPR SPG 6 1/4"TALL(HAP103)10-15K |
28-67-4 |
$58.83 |
|
|
CNTR HGR FOR 3" SLPR SPG 4 1/2"TALL(HAP203)10-15K |
29-37-4 |
$70.43 |
|
|
REAR HGR FOR 3" SLPR SPG 7 11/16"TL(HAP103)10-15K |
30-66-1 |
$61.24 |
|
|
|
 |
STRAIGHT EQUALIZERS
|
For double eye springs, the A2251B3 is used in the APT1, APTT1 hanger kits.
For specific pricing, click on any of the underlined links.
| Item No |
A |
B |
C |
D |
Outside Diameter |
| A2251B |
8" |
4" |
9/16" |
9/16" |
1 3/4" |
| A2251B3 |
8" |
4" |
9/16" |
3/4" |
1 3/4" |
|
|
EQUALIZER, CAST, 8" STRT 9/16" ALL 3 HOLES |
A2251B |
$12.62 |
|
|
|
 |
TALL TRIANGULAR EQUALIZERS
|
Widely used for years in the R.V. and Mobile Home industry.
For specific pricing, click on any of the underlined links.
| Item No |
A |
B |
C |
Outside Diameter |
| 13-10 |
6" |
4" |
9/16" |
1 3/4" |
|
|
EQUALIZER, CAST, 6" TALL TRIANGLE |
13-10 |
$15.55 |
|
|
|
 |
CURVED EQUALIZERS
|
The 13-104-2 Equalizer is found in AP233 Attaching Parts Kit. A2252CB is found in the APT3, APT5, APTT3 and APTT5 Attaching Parts Kits.
For specific pricing, click on any of the underlined links.
| Item No |
A |
B |
C |
D |
E |
Outside Diameter |
| 13-104-2 |
5 5/8" |
2 13/16" |
9/16" |
9/16" |
2" |
1 3/4" |
| A2252CB |
7 3/4" |
3 7/8" |
9/16" |
9/16" |
2 7/8" |
1 3/4" |
| A2252CB34 |
7 3/4" |
3 7/8" |
3/4" |
9/16" |
2 7/8" |
1 3/4" |
|
|
EQUALIZER, CAST, 5 5/8" CURVED FOR AP233 |
13-104-2 |
$11.23 |
|
|
EQUALIZER, CAST 7 3/4" CRVD,9/16f&r,3/4ctr hole |
A2252CB34 |
$16.69 |
|
|
|
 |
SHORT CURVED EQUALIZERS
|
The 220AIT3B is found in APT4, APTT4 hanger kits.
For specific pricing, click on any of the underlined links.
| Item No |
A |
B |
C |
D |
E |
Outside Diameter |
| 220AIT3B |
6 1/4" |
3 1/8" |
3/4" |
9/16" |
2" |
1 3/4" |
|
|
EQUALIZER, CAST, 6 1/4" CURVED, 3/4" CENTER HOLE |
220AIT3B |
$16.04 |
|
|
|
 |
EQUALIZERS FOR 2" SLIPPER SPRINGS
|
• 13-44 is found in AP216 attaching parts kit
• E5541 is found in APT6SE hanger kit
• 13-117, 118, and 119 are for new style Dexter 8-9K
For specific pricing, click on any of the underlined links.
| Item No |
A |
B |
C |
D |
E |
F |
Inside Diameter |
| 13-44 |
13 1/8" |
5 1/2" |
6" |
9/16" |
15/16" |
3/8" |
2 3/16" |
| E5541 |
12" |
4 3/4" |
4 5/8" |
9/16" |
7/8" |
9/16" |
2 3/16" |
| 13-117-03 |
13 1/8" |
5 1/2" |
5 9/16" |
5/8" |
15/16" |
5/16" |
2 3/16" |
| 13-118-03 |
17 3/8" |
7 5/8" |
7 3/4" |
5/8" |
15/16" |
5/16" |
2 3/16" |
| 13-119-03 |
23 1/2" |
10 3/4" |
10 3/4" |
5/8" |
15/16" |
5/16" |
2 3/16" |
|
|
EQUALIZER, 9K DEXTER, 38" SPACING (13 1/8"L) |
13-117-03 |
$63.83 |
|
|
EQUALIZER, 9K DEXTER, 42.25" SPACING(17 3/8"L) |
13-118-03 |
$87.51 |
|
|
EQUALIZER, 9K DEXTER, 48.5" SPACING (23 1/2"L) |
13-119-03 |
$94.40 |
|
|
|
|
EQUALIZERS FOR 2 1/2" SLIPPER SPRINGS
|
• Used on Dexter 10,000 lb. General Duty axles
• Found in HAP-256 Series Hanger Kits
• Part numbers 13-80, -82, -84 are left hand equalizers
• Part numbers 13-81, -83, -85 are right hand equalizers
For specific pricing, click on any of the underlined links.
| Item No |
A |
B |
C |
D |
Inside Diameter |
| 13-80-1 |
14 1/4" |
1 3/8" |
1" |
3/4" |
2 3/4" |
| 13-81-1 |
14 1/4" |
1 3/8" |
1" |
3/4" |
2 3/4" |
| 13-82-1 |
18 3/8" |
1 3/8" |
1" |
3/4" |
2 3/4" |
| 13-83-1 |
18 3/8" |
1 3/8" |
1" |
3/4" |
2 3/4" |
| 13-84-1 |
24 5/8" |
1 3/8" |
1" |
3/4" |
2 3/4" |
| 13-85-1 |
24 5/8" |
1 3/8" |
1" |
3/4" |
2 3/4" |
|
|
EQUALIZER, LH or RH 10K GD 38" SPACING (14 1/4"L) |
13-139-3 |
$51.76 |
|
|
EQUALIZER, LH or RH 10K GD, 42.25"SPACING (18 3/8"L) |
13-140-3 |
$80.89 |
|
|
EQUALIZER, LH or RH 10K GD, 48.5"SPACING (24 5/8"L) |
13-141-3 |
$88.49 |
|
|
|
 |
EQUALIZERS FOR 3" SLIPPER SPRINGS
|
For specific pricing, click on any of the underlined links.
| Item No |
Axle Spacing |
A |
C |
D |
E |
F |
Inside Diameter |
| 13-107-7LH |
38" |
14 1/4" |
5" |
4 1/2" |
1 1/8" |
1" |
3 1/8" |
| 13-108-3LH |
42 1/4" |
18 3/8" |
7 1/8" |
6 3/4" |
1 1/8" |
1" |
3 1/8" |
| 13-109-3LH |
48 1/2" |
24 3/4" |
10 3/8" |
10" |
1 1/8" |
1" |
3 1/8" |
|
|
3" Slipper Spring Equalizer For 38" Axle Spacing |
13-107-7 |
$149.61 |
|
|
3" Slipper Spring Equalizer for 42 1/4" Axle Spacing |
13-108-3 |
$156.53 |
|
|
3" Slipper Spring Equalizer for 48 1/2" Axle Spacing |
13-109-3 |
$186.53 |
|
|
|
 |
EQUALIZERS FOR HAYES 2 1/2" SLIPPER SPRINGS
|
• 1995 Hayes changed from Universal to LH and RH specific.
• Equalizer is stamped L or R to identify. Tab lock/reinforcement plate goes to the outside
of trailer.
For specific pricing, click on any of the underlined links.
| Item No |
LH/RH |
A |
B |
C |
Inside Diameter |
| 09138706 |
LH |
11 1/2" |
1" |
3/4" |
2 3/4" |
| 09138707 |
RH |
11 1/2" |
1" |
3/4" |
2 3/4" |
| 09138708 |
LH |
15 3/4" |
1" |
3/4" |
2 3/4" |
| 09138709 |
RH |
15 3/4" |
1" |
3/4" |
2 3/4" |
| 09138710 |
LH |
21 3/4" |
1" |
3/4" |
2 3/4" |
| 09138711 |
RH |
21 3/4" |
1" |
3/4" |
2 3/4" |
|
|
EQUALIZR LH 9K-12K HAYES 42.25" SPACING(15 3/4"L) |
09138708 |
$154.89 |
|
|
EQUALIZR RH 9K-12K HAYES 42.25" SPACING(15 3/4"L) |
09138709 |
$154.89 |
|
|
EQUALIZR LH 9K-12K HAYES 48.25" SPACING(21 3/4"L) |
09138710 |
$178.33 |
|
|
EQUALIZR RH 9K-12K HAYES 48.25" SPACING(21 3/4"L) |
09138711 |
$178.33 |
|
|
|
|
HANGER FOR "WI" SERIES SPRINGS
|
Use on 1 3/4" wide "WI" series slipper springs with 9?16" spring eye I.D. |
|
9/16"-18 x3" SHACKLE BOLT (QTY 1) |
3816 |
$1.40 |
|
|
9/16"-18 HEX LOCKNUT FOR SHACKLE BOLTS (QTY 1) |
3801 |
$0.40 |
|
|
|
|
SPRING CENTER TIE BOLTS
|
These are the most popular replacement tie-bolts used in the industry. |
|
5/16" X 3" SPRING CENTER TIE BOLT W/NUT |
516-3TB |
$3.38 |
|
|
5/16"-24 HEX NUT FOR TIE BOLT |
516-TBN |
$0.89 |
|
|
3/8" X 3" SPRING CENTER TIE BOLT W/NUT |
38-3TB |
$3.79 |
|
|
3/8" X 5" SPRING CENTER TIE BOLT W/NUT |
38-5TB |
$3.73 |
|
|
3/8"-24 FIN HEX NUT GR2 |
38N |
$0.34 |
|
|
|
|
U-BOLT KIT, 1 3/4" ROUND AXLE, BOXED
|
1 3/4" Round Axle, 1 3/4" Wide Spring -- Commonly used on 2,000 lb. straight axles. INCLUDES THE FOLLOWING:
4-UBolts, 1 3/4" Round, 3/8" Diameter, 4 1/4" Long
8-Nuts, 3/8" I.D.
2-Axle Plates |
175643LN |
$9.08 |
|
|
|
|
U-BOLT KIT, 2 3/8" ROUND AXLE, BOXED
|
2 3/8" Round Axle, 1 3/4" Wide Spring -- Commonly used on 2,000 lb. drop axles and 3,500 lb. axles with
2 3/8" tube O.D. INCLUDES THE FOLLOWING:
4-UBolts - 2 3/8" Round, 1/2" Diameter, 5 1/2" Long
8-Nuts, 1/2" I.D.
2-Axle Plates |
1756400LN |
$18.30 |
|
|
|
|
U-BOLT KIT, 3" ROUND ,9/16 DIA BOXED
|
3" Round Axle, 1 3/4" or 2" Wide Spring -- Used as a "heavier duty" U-bolt kit on 5,200 lb., 6,000 lb. and
7,000 lb. axles because the U-bolt diameter is 9/16".
INCLUDES THE FOLLOWING:
4-UBolts, 3" Round, 9/16" Diameter, 7 1/4" Long
8-Nuts, 9/16" I.D.
2-Axle Plates
|
176500LN |
$32.68 |
|
|
|
|
U-BOLT KIT, 3" ROUND AXLE, 1/2" BOXED
|
3" Round Axle, 1 3/4" or 2" Wide Spring -- Commonly used on 5,200 lb.,6,000 lb., 7,000 lb. and 3,500 lb axles with 3" tube O.D. INCLUDES THE FOLLOWING:
4-UBolts, 3" Round, 1/2" Diameter, 7" Long
8-Nuts, 1/2" I.D.
2-Axle Plates |
1755892LN |
$26.29 |
|
|
|
|
U-BOLT KIT, 3 1/2" ROUND AXLE, BULK
|
3 1/2" Round Axle, 2" Wide Spring -- Used on 8,000 lb. axles with 3 1/2" diameter tube.
INCLUDES THE FOLLOWING:
4 U-Bolts, 3 1/2" Round, 9/16" Diameter, 8" Long
8 Nuts, 9/16" I.D.
2 Axle Plates
|
APUBR35BK |
$42.77 |
|
|
|
|
U-BOLT NUTS
|
|
|
1/2"-20 NUT GR2 |
12N |
$0.81 |
|
|
3/8"-24 FIN HEX NUT GR2 |
38N |
$0.34 |
|
|
3/4"-10 HEX LOCKNUT,10GD SPG BOLT & 12-15K U-BOLT |
6-113 |
$1.36 |
|
|
5/8"-11 HEX LOCKNUT, GR2 |
6-38 |
$0.94 |
|
|
9/16"-18 x 7/8"OD HEXNUT |
916N |
$0.58 |
|
|
|
|
|
|
POPULAR SUSPENSION BOLTS WITH NUTS
|
|
|
3/4"-16 x3.5"WET SHACKLE BOLT W/NUT/ZERK/CTTR PIN |
126A1 |
$6.34 |
|
|
9/16"-18 x3" WET SHACKLE BOLT W/NUT & ZERK |
126B2 |
$4.69 |
|
|
7/8"-9 x 4 5/8" WET BOLT W/NUT, ZERK PRESSED IN |
166074 |
$8.37 |
|
|
7/8"-9 x 4 11/16"EQ BOLT W/NUT & COTTER PIN |
166078 |
$6.51 |
|
|
9/16"-18 x3 1/2" SHACKLE BOLT W/NUT |
166079 |
$1.83 |
|
|
9/16"-18 x 3" SHACKLE BOLT WITH NUT |
166081 |
$1.93 |
|
|
|
|
SUSPENSION BOLTS
|
|
|
1"-14 x 5 7/8" EQ BOLT (HAYES) |
090746 |
$20.29 |
|
|
3/4"-16 x 4 1/2" BOLT, SPG EYE (HAYES) |
090747 |
$4.06 |
|
|
9/16"-18 x3" WET SHACKLE BOLT W/ZERK PRESSED IN |
126B2LN |
$4.09 |
|
|
3/4"-10 x 4 1/2"WET BOLT FOR 10GD SPG EYE |
7-135-2 |
$7.76 |
|
|
1"-8 x 5 1/4" WET BOLT, EQUALIZER (10GD) |
7-136-2 |
$8.04 |
|
|
1"-8 x5 1/2"SPG EYE BOLT FOR RUBBER BSHD 10K-15K |
7-169 |
$6.94 |
|
|
1 1/8"-7 x 6" EQ BOLT (10-15K) |
7-170 |
$11.07 |
|
|
5/8"-11 x 4" SPG EYE BOLT, (9K) |
7-181 |
$2.09 |
|
|
1"-8 x 5" EQUALIZER BOLT (9K) |
7-182 |
$6.90 |
|
|
1/2"-20 x 4 1/2" BOLT, EQ/SPG RETAINER (10-15K) |
7-95 |
$1.41 |
|
|
|
|
SUSPENSION NUTS
|
|
|
1"-14 HEX LOCKNUT FOR EQ BOLT (HAYES) |
090636 |
$3.00 |
|
|
3/4"-16 HEX LOCKNUT FOR SPG EYE BOLT (HAYES) |
090637 |
$1.11 |
|
|
1/2"-20 NUT GR2 |
12N |
$0.81 |
|
|
3/8"-24 FIN HEX NUT GR2 |
38N |
$0.34 |
|
|
1"-8 HEX LOCKNUT FOR 9K EQ & 10-15K SPG EYE BOLT |
6-112 |
$2.32 |
|
|
3/4"-10 HEX LOCKNUT,10GD SPG BOLT & 12-15K U-BOLT |
6-113 |
$1.36 |
|
|
5/8"-11 HEX LOCKNUT, GR2 |
6-38 |
$0.94 |
|
|
1 1/8"-7 HEX LOCKNUT FOR EQ BOLT (10-15K) |
6-72 |
$3.76 |
|
|
9/16"-18 x 7/8"OD HEXNUT |
916N |
$0.58 |
|
|
|
|
